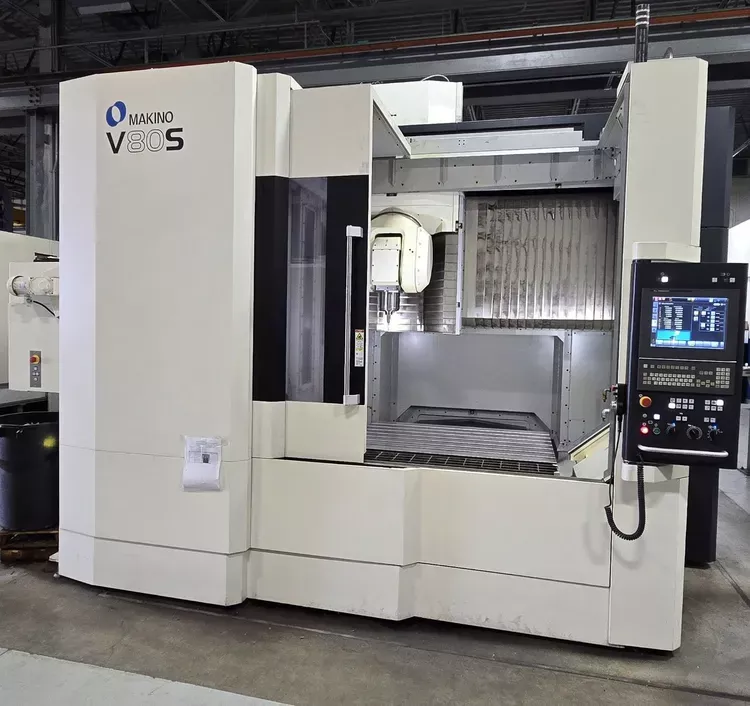

Makino V80S 5 Axis

X-Axis travel: 51.2 in
Y-Axis travel: 39.3 in
Z-Axis travel: 23.6 in
A-Axis travel: -3° to +30°
C-Axis travel: -60° to +60°

CNC FANUC 31I A5 CNC COLOR 5 AXIS CNC CONTROL WITH PRO 6
Renishaw part probe
Blum laser measurement
Scale feedback
Air dryer
Spindle chiller
Coolant thru spindle
400 pairs tool offsets
48 fixture offsets
Tilted work plane indexing command
High speed smooth TCP
3-dimensional cutter compensation
Super GI 5 control
Rigid tapping
Eco mode functions
Collision safeguard
Main spindle horsepower: 30 hp
Main spindle speed: 20,000 RPM
Main spindle taper: HSK 63A
Cutting feed rate: 1,575 in/min

Rapid traverse rate X-axis: 2,283 in/min
Rapid traverse rate Y-axis: 2,283 in/min
Rapid traverse rate Z-axis: 2,283 in/min

Tool diameter: 40 in
Tool length: 11.8 in
Tool weight: 17.6 lb
Chip conveyor

Temperature controlled coolant system
Washing coolant in machining area
Portable hand held MPG
Table length: 51.81 in
Table width: 39.37 in
Weight on table: 5,512 lb
Machine weight: 45,320 lb
