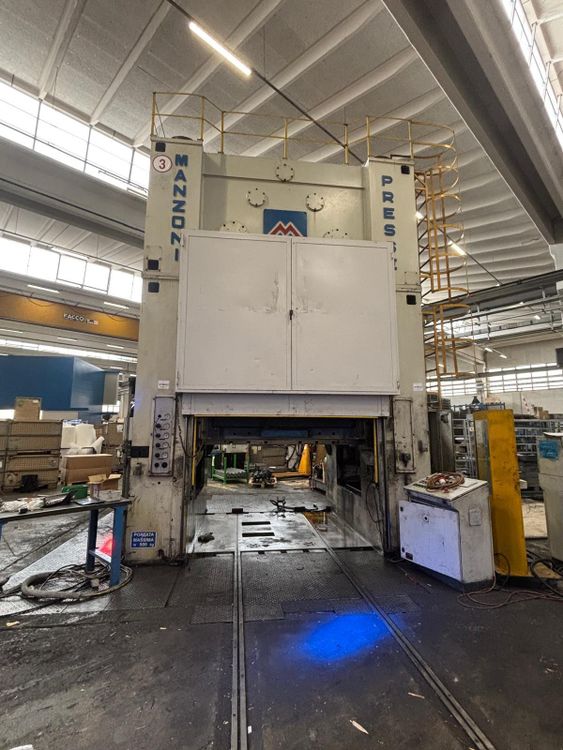

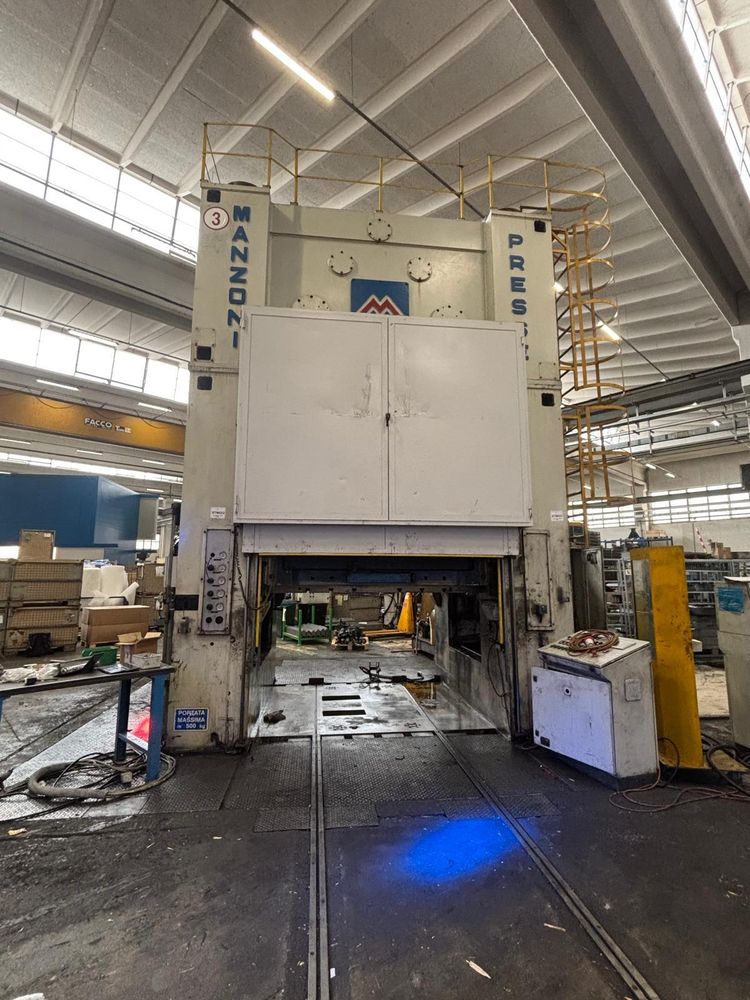

Manzoni 1500 Tons 1500 ton

Ref : 2777835-3-AW

Condition : Used

Manufacturer : Manzoni

Model : 1500 Tons

Pressure : 1500 ton

Year(s) : 1996

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Mechanical Press
Nominal Power: 1,500 ton
4 Point
Working Speed: 20–60 SPM
Slow Speed: 4–10 SPM
Fixed Slide Stroke: 160 mm
Motor Slide Adjustment: 160 mm
Shut Height at BDC: 900 mm
Bolster Dimensions: 2,400 x 2,200 mm
Slide Dimensions: 2,250 x 2,200 mm
Opening Between Frontal Columns: 2,500 mm
Opening Between Trays: 2,250 mm
Between Side Columns: 1,350 mm
Bed Opening: 434 mm
Main Motor Power: 134 kW
Press Weight: 224,000 kg
