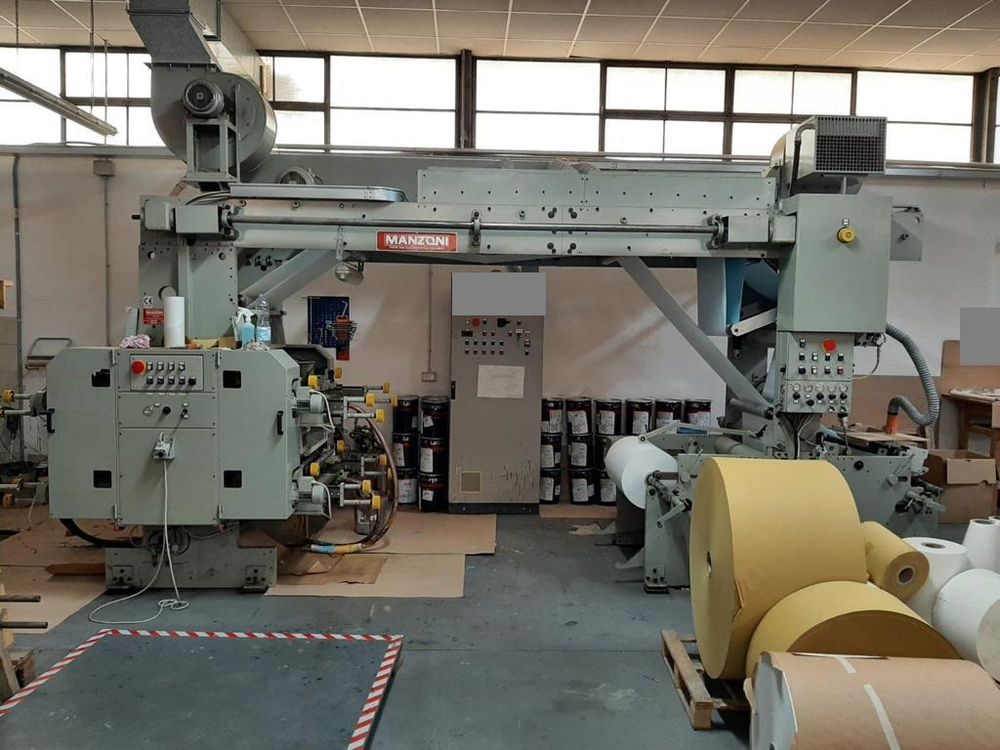

Manzoni TC 504 4 600 mm

Year: 2005 (almost new, with very few working hours)
4 colors
Central drum
CE brand
For paper and film
Max print width: 600 mm
Material passage: 650 mm
Air pneumatic mandrel for diameters: 70 – 76 mm
Unwinder diameter: 1200 mm
Rewinder diameter: 1200 mm
No. 4 circular knives before the rewinder brand “Mario Cotta “
Trim suction system
4 closed doctor blades with teflon coated body (fast replacement devices)
Tanks with teflon coated and fauced for the ink discharge
4 pneumatic pumps
Print repeat: 280-600 mm
Clichè thickness: 2 mm
Cross register/lateral register: 20 mm
Pneumatic detachment of clichè holder cylinders
Manual inks carriage advancement (slow grinding of the colour when the machine is stopped by electrical motors)
Speed: 130 m/min
Cylinders: 8×280, 4×400 mm
Water based inks (solvent based is also possible)
No telecamera
Drying system: 3 electrical resistances 12-24-36 kw
Tension 400 VOLT tri-phase frequency 50 Hz
Installed power 64 Kw – 114,6 A
Air: 6 bars
Paper from 30 to 80 grs
Extractor hood and outlet for the fumes
Overall dimensions: L6.2m x H3.4m
Visible in operation
Immediately available
