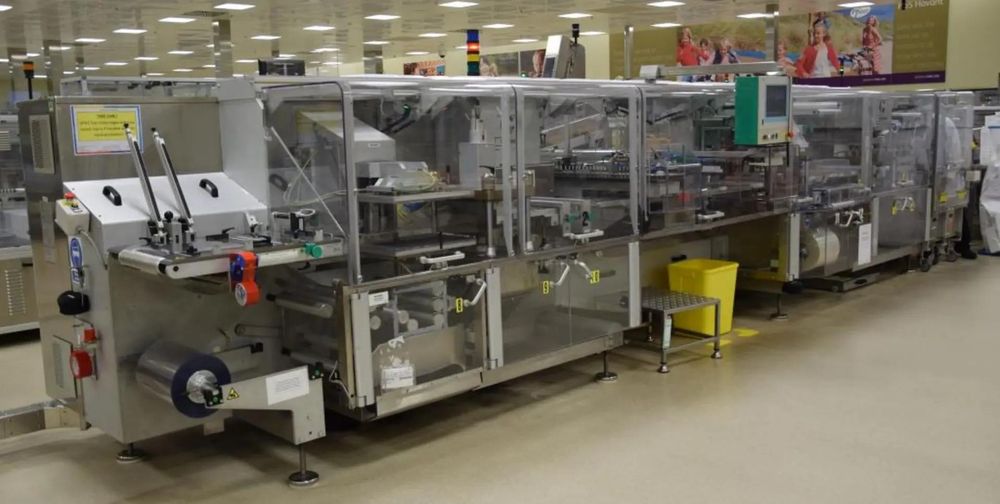

MARCHESINI FB420, Blistering Machine

MACHINE CHARACTERISTICS
PC-controlled
modular structure
tool-less change over
independently servo-driven machine stations
HMI Integrated Robomaster for products Pick-and-Place

PRODUCTION CHARACTERISTICS
Output: 48.000 syringes/h (max)
Max forming depth: 42 mm
Mechanical speed Forming/Sealing: 8-50 cycles/min
Mechanical speed Standard Cutter: 8-50 cycles/min
Max forming area: Film width: max 254 mm; Film index: 320 mm
Max die-cutting area: Film width 248 mm; Film index: 310 mm

ENERGY CONSUMPTION
Power installed (with sealing station): 36 KW
Cooling water consumption (with sealing station): ca. 370 L/h
Compressed air consumption (6-8 bar) (with sealing station): 1150 Nl/min
