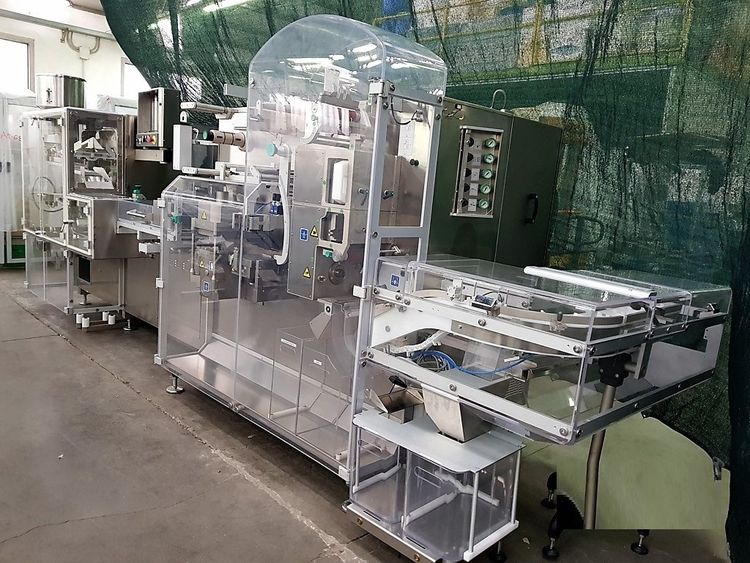

MARCHESINI MB 430

Automatic blister packaging machine

Medium-speed robotic continuous thermoforming blister
Compatible with PVC Aluminum, Aluminum Aluminum, Polypropylene, PET, PVC, Aclar, and COC materials
Easy access to all stations for maintenance and cleaning
Fully visible movements for enhanced operational oversight
Safety devices to protect operators during work phases
PC-retrievable product parameters for quick format changes
Brushless motor-controlled unwinder with automatic stop feature
Integrated cutter and automatic vacuum for forming material joining
Servomotor-managed forming station
Self-aligning pre-heaters with independent movement
Brushless motor for precise positioning of forming film
Display pitch adjustment for optimal performance
MS170 loader trolley with a maximum load capacity of 300 kg
Enclosed power supply unit in a removable cabin
Revolutionary design for flexibility and reduced cleaning times
Multipurpose trolley for quick and agile operations
Harlequin blister vision product control via camera

Technical Specifications
Phases: 3
Max Roll Diameter of Thermoformable Material: 600 mm
Max Coil Diameter of Coating Material: 280 mm
Conveyor Belt Length: 1380 mm
