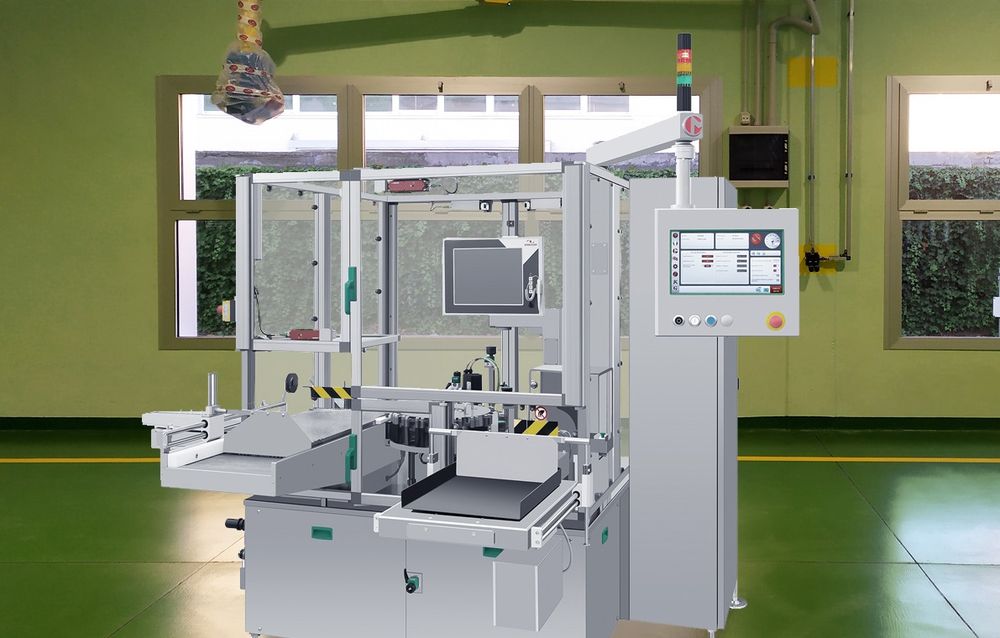

MARCHESINI Neri RL-F500

The Marchesini Neri RL-F500 is an automatic machine suitable to apply labels
at high production speed on vials, ampoules, cartridges and cylindric containers.
Unit operating in line with other machines or as a free-standing unit from tray to tray.

Main Features
Design, manufacturing and ergonomics, in accordance with GMP norms.
AISI 304 stainless steel supporting frame and panelling.
Scroll feeding system, spacing and distributing ampoules or vials, in step on the main transport carousel.
Container transport roller carousel with adjustable pitch, designed to handle a wide range of sizes.
Speed adjustment from operator panel.
One (1) label dispenser.
Self-learning system of the labels to be handled.
Provision to store several sizes of labels, with label size recall from HMI (no need to adjust the position of photocells or sensors).
Stepping feeding of labels, allowing empty spaces on reel.
Horizontal and vertical adjustment of the labels position by means of hand wheel control complete with mechanical digital indicators.
Micrometric adjustment of the overprint position on the labels.
Label smoothing system with a “mousse” rubber belt.
Automatic reel unwinding unit.
Backing paper rewinding unit with mechanical clutch.
Dispensed label counter visible on display.
Products extraction system from the main transport carousel, by means of an extraction drum with rubber suction cups.
Scroll for the products transfer from the extraction drum to the machine outfeed.
Wrong product rejection system positioned in the transfer screw.
Collation of products on tray.
Size changeover with no need of specific tools.
CE marking.

Safeties and Controls
Safety guards in anodized aluminium frame and methacrylate panels.
Emergency circuits and protections with safety level “PLd Cat.3”.
Missing label control on reel.
End of reel control with machine stop.
Control for backing paper rewinding unit maximum load, with machine stop.
Minimum load control at the infeed with machine stop and automatic restart.
Compressed air control pressure-switch with machine stop at low-level detection.

Included
One (1) ampoules or vials size consisting of: feeding scroll, intermediate guides and discharge screw.
