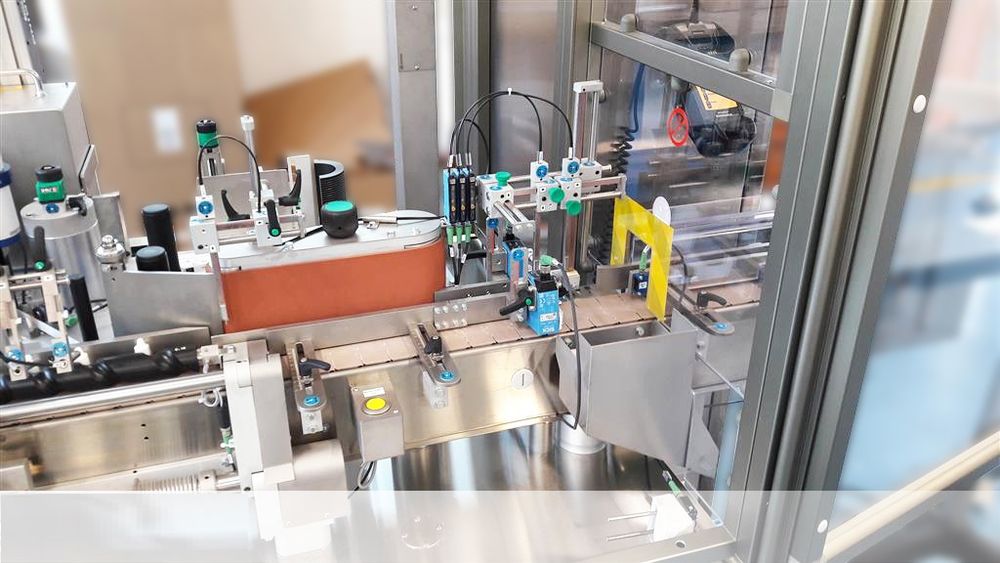

MARCHESINI, Neri SL-F425

The Marchesini Neri SL-F425 is an high speed automatic machine suitable to apply one (1) Label on vials,
cylindrical bottles and oval, rectangular or square containers.
Unit operating in line or as a stand-alone machine equipped with appropriate feeding/collecting systems.

Main Features
Design, manufacturing and ergonomics, in accordance with cGMP norms.
AISI 304 stainless steel supporting frame and panelling.
Conveyor belt with adjustable side guides for handling different bottle sizes.
Scroll spacing device of the bottles to handle.
Continuous mode speed adjustment.
Automatic synchronization of the working speeds.
One (1) label dispenser.
Self-learning system of the labels to be handled.
Provision to store several sizes of labels, with label size recall from HMI (no need to adjust the position of photocells or sensors).
Stepping feeding of labels, allowing empty spaces on reel.
Horizontal and vertical adjustment of the labels position by means of hand wheel control complete with mechanical digital indicators.
Micrometric adjustment of the overprint position on the labels.
Label smoothing system with a “mousse” rubber belt (only for cylindrical bottles).
Automatic, motorized unwinder with adjustable loop.
Backing paper rewinding unit with mechanical clutch.
Dispensed labels counter, with visualization on Display.
Bottles rejection system with collection bin.
Quick size changeover.
CE marking.

Safeties and Controls
Safety guards in anodized aluminum frame and methacrylate panels.
Emergency circuits and protections with safety level “PLd Cat.3”.
Missing label control on reel.
End of reel control with machine stop.
Control for backing paper rewinding unit maximum load, with machine stop.
Minimum load control at the infeed.
Gap Control with machine stop in case of close bottles.
Compressed air control pressure-switch with machine stop at low-level detection.

Included
One (1) bottles size consisting of feeding scroll.

Optional Accessories
Upper belt to stabilize containers during labelling and label smoothing system with brushes or “mousse” rubber rolls.
