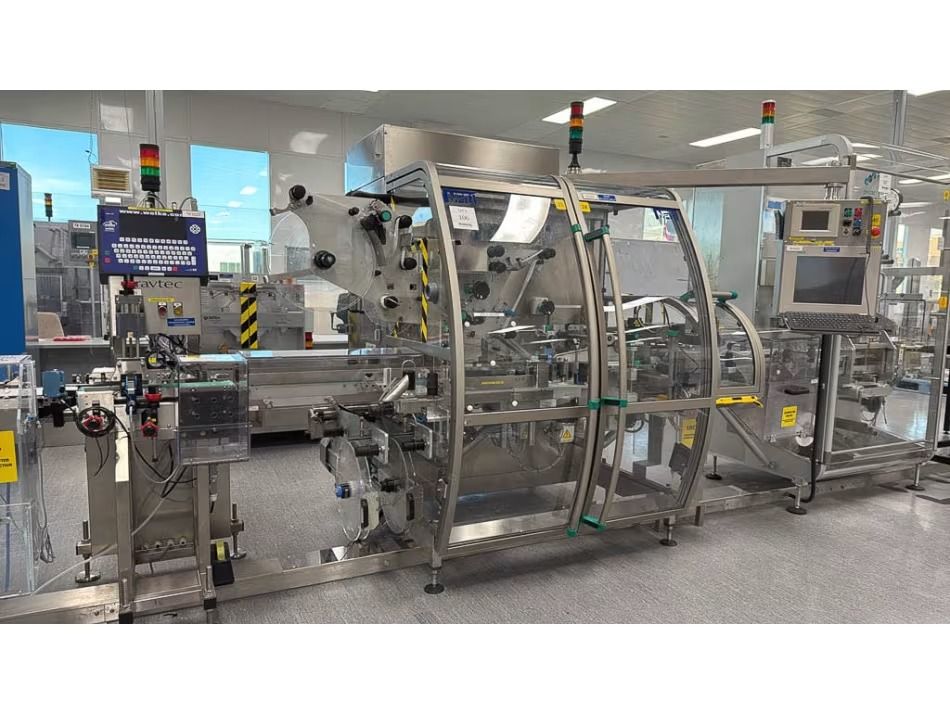

MARCHESINI, Neri 400 VTE

STANDARD FEATURES:
Balcony machine with brushed stainless steel frame.
Electrical panel on board the machine.
Easy access to the electrical and mechanical parts.
Positive type transport of the cartons by toothed belts.
Upper belt stabilizing the cartons during the application phase of the two inviolability seals (VET and TE).
Machine management by PLC equipped with “fail - safe” positive logic program.
Automatic label unwinder.
Double horizontal infeed carton accumulation belts.
Device to dispense the cartons in phase and step on the toothed conveyor belts.
Label dispensing by precision stepping motor.
Automatic synchronization of working speeds.
6" color video for self-diagnosis installed on rotating arm.
Auto-learning of the length of labels to be processed.
Automatic label changeover with recall from terminal and possibility of storing different label formats.
Minimum input load and maximum output load control device.
Width of cartons (A) 20 ÷ 180 mm.
Carton height (B) 15 ÷ 120 mm.
Carton length (C) 70 ÷ 200 mm.
Label height 20 ÷ 60 mm.
Label length 15 ÷ 80 mm.
Maximum output (pcs./min.) 400.
Label output speed 0 ÷ 50 m/min.
Maximum roll diameter 400 mm.
Standard power supply 380 - 220 V-50 Hz.
Power 4 kW.
Compressed air pressure 6 bar.
Compressed air consumption 20 Nl/min.
Weight: 90 Kg
