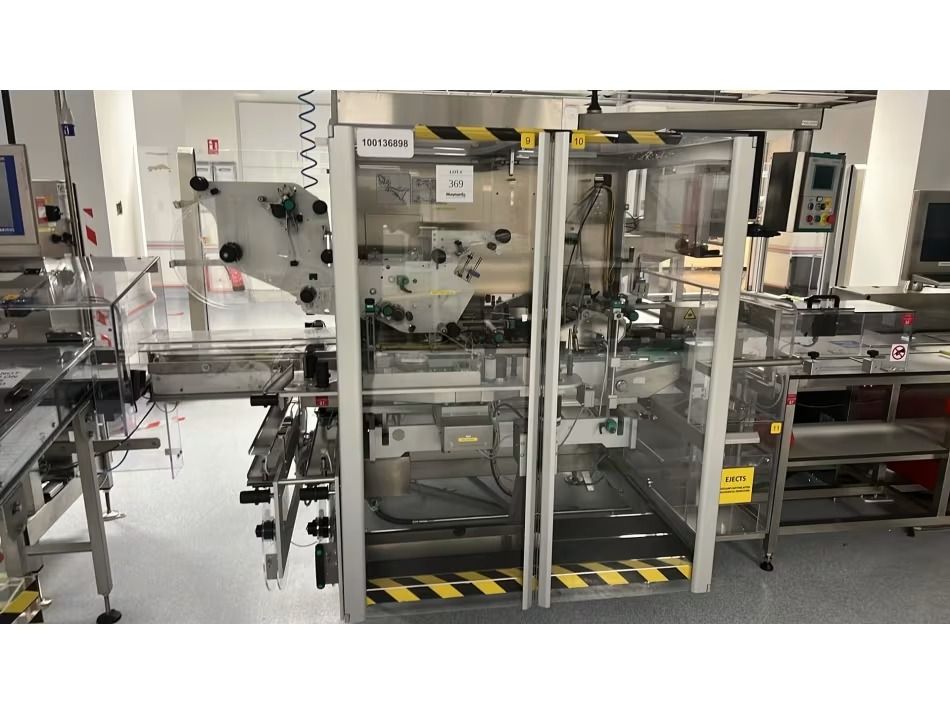

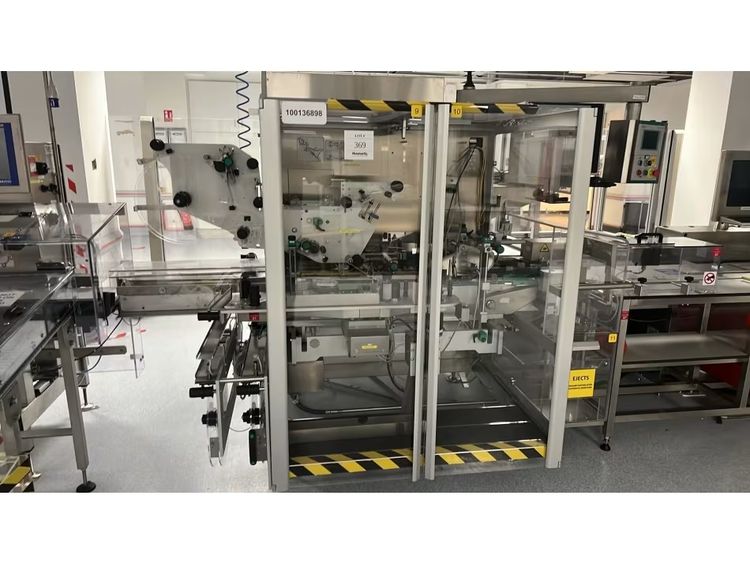

MARCHESINI, Neri BL400 VTETT

Labelling Machines

Machine suitable for the installation of:
• an Ink-jet or Laser printing system on the upper face and/or on both sides of the case for printing legible variable data and related 2D code (Datamatrix);
• relative controls with camera.

Machine complete with:
- Power supply at 400 Volt, 3 phases, 50 Hertz, Earth & Neutral wiring;
- Electrical panel on board;
- PLC SIEMENS;
- TP700 Touch Screen operator terminal, 5.7″ color. Seven levels of passwords;
- Accident prevention guards in aluminum and methacrylate. Schmersal type safety switches;
- Stopping the machine if a door is opened;
- Compressed air control pressure switch. With machine stop at low level detection;
- Outgoing cartons counter;
- Rejected cartons counter;
- Work hour counter;
- The machine is equipped with all the safety devices necessary for safe and standard-compliant operation;
- Delivered with CE mark;
- Production speed: up to 400 pieces/minute;
- Switching is done without any extra size parts as only a few adjustments are needed.

Case format
• A (width): Min 20 mm - Max 120 mm
• B (thickness): Min 15 mm - Max 90 mm
• H (length): Min 70 mm - Max 250 mm

Stamps
• A (length): Min 15 mm - Max 80 mm
• B (height): Min 20 mm - Max 60 mm

Seals
• A (length): Min 15 mm - Max 60 mm
• B (height): Min 15 mm - Max 30 mm

Label speed
• From 0 to 60 metres/minute

Roll diameter
• Maximum 400mm

Core diameter
• 45 or 75mm

Production speed
• up to 400/pcs. min
