Mark Andy VersaMax 10 Color 28"

28" Wide Mark Andy VersaMax Flexo Press
Equipped with both UV and hot air dryer on all print units
Mark Andy VersaMax flexo press Model Year 2016 – started up in 2017
Material capability specifications, .5 mil (1/2 mil or 12 microns) to 18pt substrates
Single spindle 40” max. roll size unwind unit
Accessory Module with mounting for single side Vetaphone corona treater
Infeed Unit, with Meech Web Cleaner
Control System: full servo transport with automatic pre-register and running registration
Qty. 10 VersaMax flexo print units w/chill rolls with
direct servo-driven plate mandrel, servo impressions rolls,
and servo anilox rolls. UV and hot air drying on all 10 print units.
Print repeat range: minimum 10” to maximin 32” inches
First print unit equipped for reverse side printing possible w/o turning the web.
Two GEW UV cassettes are positioned after the first print station for
accepting curing cassettes
Print stations each equipped with a GEW UV Curing unit
Print stations each equipped with a Mark Andy gas fired hot air dryer unit
for water based or solvent inks.
Press is solvent safe when running in the solvent use mode.
10th print unit set up for inline lamination using either hot air drying or
UV curing w/twin UV mounting units. Extended hot air dryer for
peak aqueous lamination performance
Single spindle 40” lamination unwind unit
Web viewing with AVT inspections system
Chiller system comes with the press – located outside the user’s facility
Gas fired burner and blower package is designed to be mounter outside of user’s facility
All tooling comes with the press, print sleeves, anilox rolls, spare parts,
press + parts manuals.
Anilox rolls= 20 pcs.
List of print cylinders available upon request
The machine is under power and can be seen running

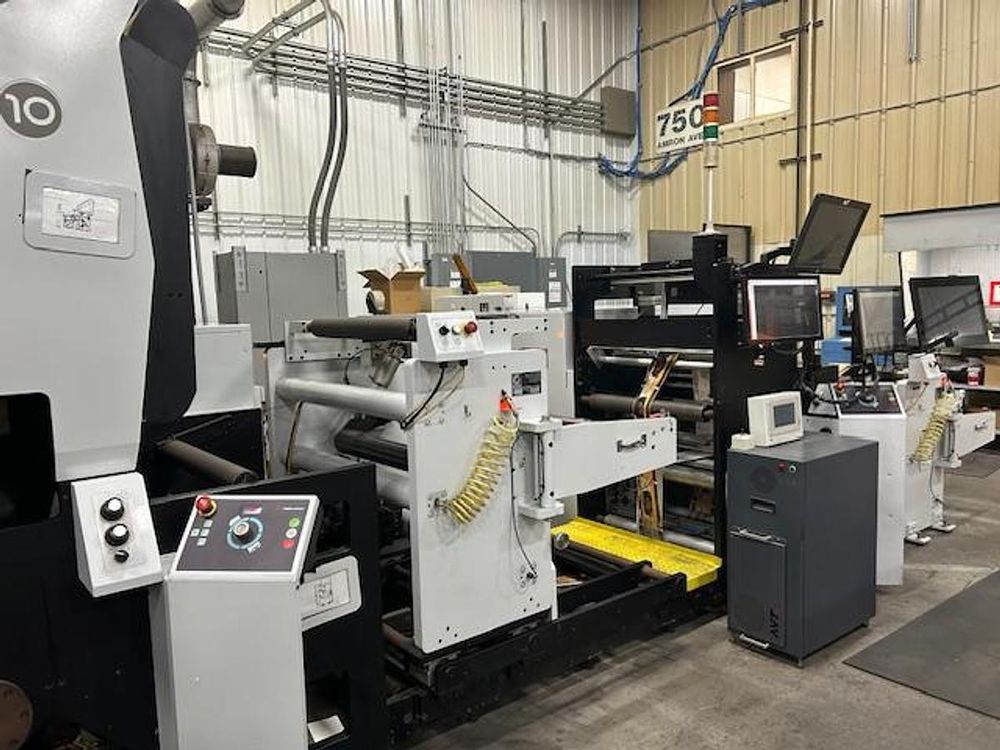

The anilox cleaner shown in the photos and plate mounter will be sold separately.
