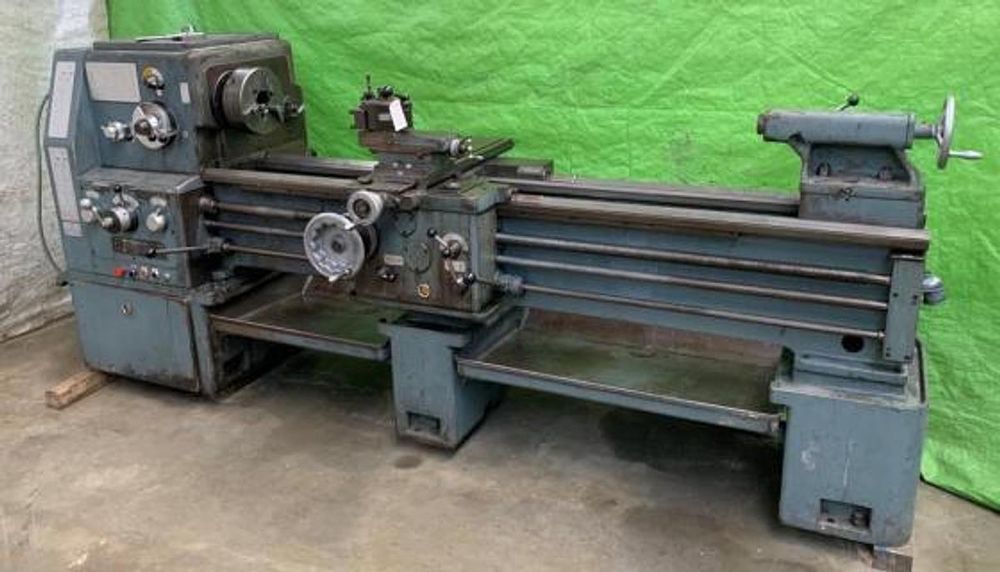

Martin Engine Lathe 2240 rpm DS-50
Ref :
2754731-3-MT
Condition :
Used
Manufacturer :
Martin
Type :
Engine Lathe
Spindle Speed :
2240 rpm
Model :
DS-50
Year(s) :
1969
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Center height 250 mm
Distance between centers approx. 1740 mm
Swing over bed 500 mm
Spindle bore 63 mm
Spindle mount size 6
Tailstock taper MT5
Spindle speeds 170–2240 rpm
Feeds longitudinal/plan 0.014–1 / 0.0063–0.45 mm/rev
Thread pitches 0.1–112 mm
Electrical connection 380 V, 7.5 kW
Machine weight 2360 kg
Floor space 3370 x 1000 x 1400 mm
Complete electrical system
3-jaw chuck RÖHM Ø250 mm
Quick-change tool post MULTIFIX size C with 3 or 4 holders
2 chip trays
Operating manual included
