Martin Martin

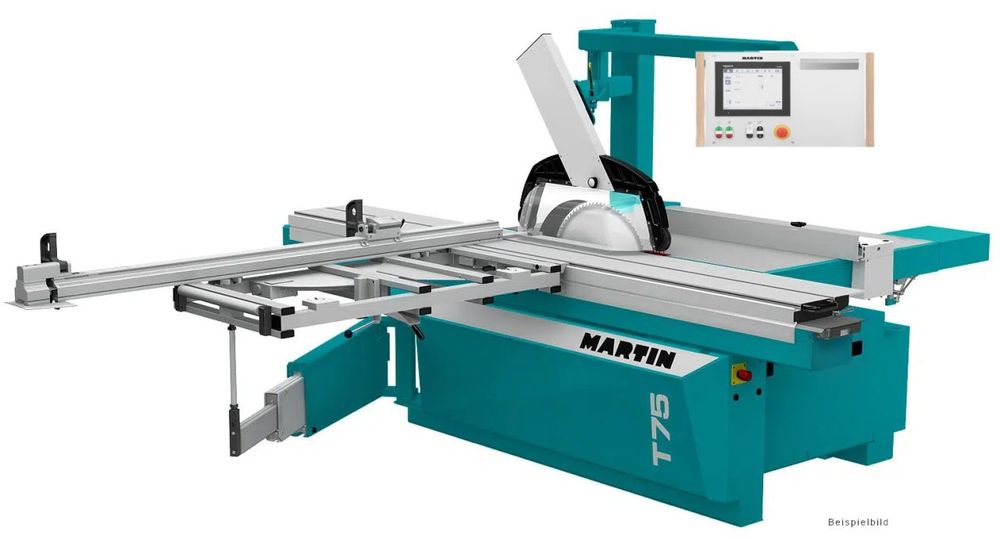

Panel Saw
Heavy-duty precision panel saw – double-sided tilting
Axis positioning control 10.4" touchscreen
9.5 kW motor
Infinitely variable speed control 2,000 – 6,000 rpm
Scoring unit / prepared
Max. cutting height 204 mm, saw blade diameter 250 – 550 mm
Saw blade tilt adjustable -46° to +46°
Height and tilt adjustment via control unit
Parallelogram crosscut table, for double-sided tilting up to 46°, LCD display, 0.01° fine adjustment for cutting angle
Trim table length 3300 mm
Cutting width with rip fence 1100 mm
Pneumatically lowerable rip fence
Electrically motorized positioning of the rip fence via axis positioning control
Swivelable control panel above the table
Continuous rip fence with 2 stop flaps
CE compliant
Machine AS NEW
