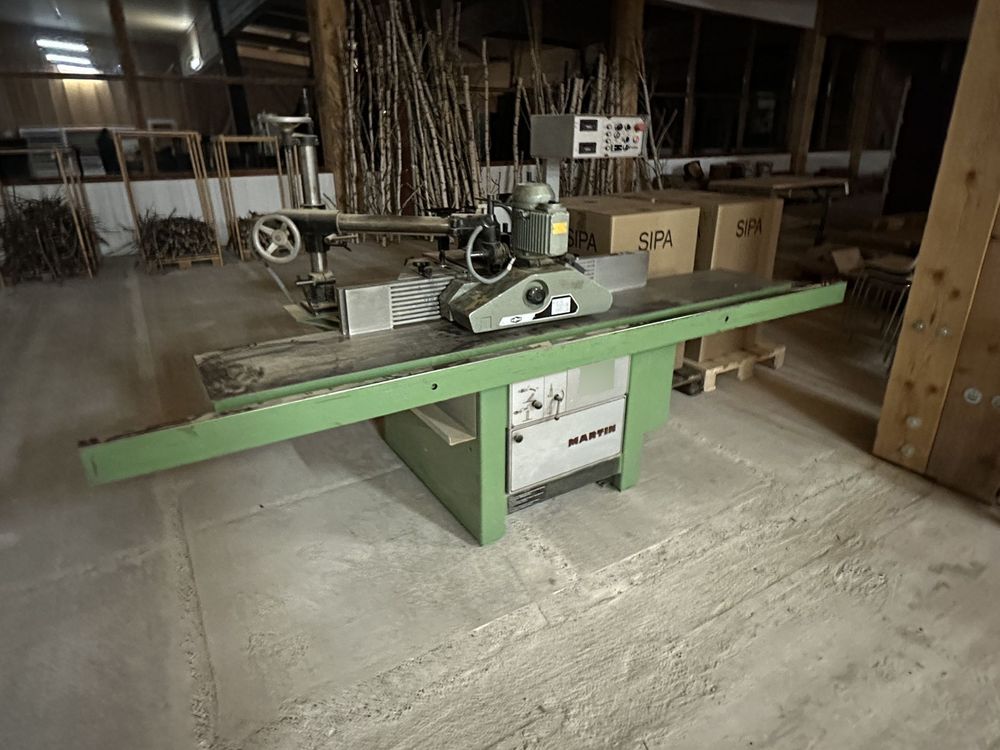

Martin T 25

Design: Swiveling
Forward swivel angle: 45 degrees
Rearward swivel angle: -5 degrees
Table length: 2400 mm
Table width: 1240 mm
Extendable frame support: Yes
Number of spindle speeds: 4
Speeds: 3000/4500/6000/9000 rpm
Speed ​​selection: Pole-changing
Motor speed indicator: LED
Milling spindle taper: MT 5
Milling spindle clamping length: 150 mm
Cutting arbor diameter: 30 mm
Control panel position: Top
Spindle height adjustment: Electric
Spindle swivel adjustment: Electric
Spindle locking: Yes
Spindle brakes: Electric
Mill fence dust extraction diameter: 125 mm mm
Machine extraction diameter: 100 mm
Spindle rotation: Forward/reverse
Electric axes: Spindle height, swivel, and milling fence
Table opening closing: Insert segment
Fence jaw design: Integral/Aigner
Fence jaws: 650 / 500 mm
Fence adjustment: Manual display
Milling fence: Digital
Milling jaw adjustment: Manual
Feed unit: Yes
Feed rollers: 4 adjustment
Feed speed: Fixed speeds
Working height/infeed table height: 850 mm
Dimensions: 3000 x 1240 x 1900 mm
Extraction diameter: 1 x 125 mm, 1 x 100 mm
