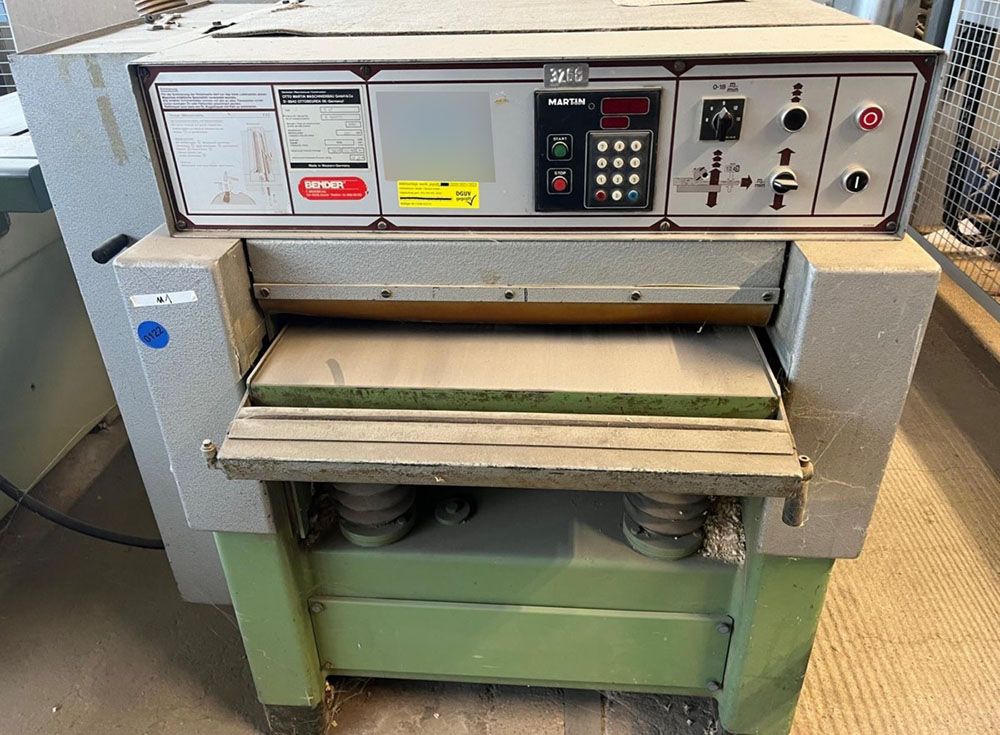

Martin T 43

Planing width 630 mm, planing height 250 mm,
table length 1100 mm,
maximum cutting depth 8 mm,
knife shaft diameter 125 mm
speed 5,000 rpm
push button for automatic knife shaft start,
stop button for automatic knife shaft brake according to VBG 7 j,
electric thicknessing table adjustment in rapid speed with push button, in
creep speed with push button, planing height in digital display with 1/10 mm display (LED)
4 feed speeds 6-9-12 and 18 m/min. Electrically selectable with switch (on during planing).
Large rubber feed rollers 85 mm D (compensation for different thicknesses of wood, utilization of the entire
planing width, no crushed edges, self-cleaning)
Link pressure beam,
Cutter blocking for knife change,
Swivel-up hood with integrated chip extraction nozzle 160 mm D,
Minimum extraction air volume approx. 25 m³/min. at 40 mm WS,
Thicknessing table mounted on 4 support spindles to prevent tilting, table surface precision-planed (without slide rollers).
(Only 4 support spindles are able to absorb the tilting forces of incoming or outgoing timber, feed rollers and pressure beams
Only an absolutely horizontal thicknessing table position avoids thickness differences).
Wood support with scratch-free carpet support, central lubrication, tool tray, very quiet machine.

Lockable main switch, automatic star-delta start, automatic brake,
motor protection (winding protection), undervoltage protection,
TERSA cutterhead with 4-way reversing system

With outfeed table
1 set of spare knives
Thicknessing table additionally equipped with sliding rollers.
Roller body ribbed (steel) on the infeed side
Pre-programmable thickness setting with electronic display LED display
Thicknessing table extension
