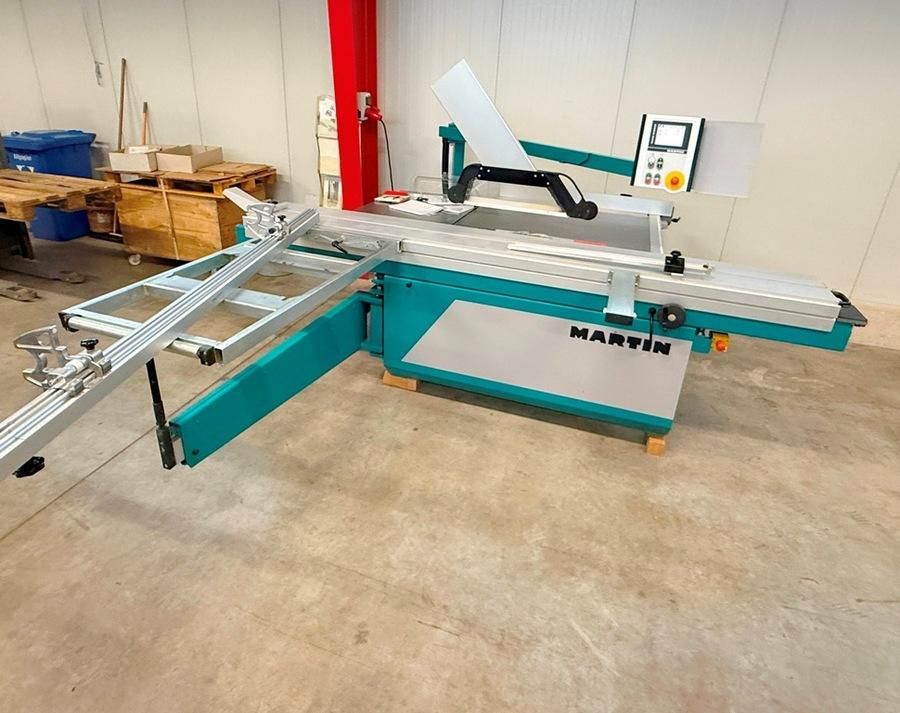

Martin T 60 CLASSIC
EUROPE (Western and Northern)
Sliding table saw
Used, only 130 operating hours
Motor power main saw 5.5 kW
Sliding table 3000 mm long
Saw blade size 250 - 400 mm diameter
Cutting height maximum 130 mm
Saw blade tilt motorized 0° - 46°
Saw blade change with quick clamping system SprintLock
Speeds 4000 / 4800 / 6000 rpm
Speeds are determined by the position of the V-belt
2-axis scoring unit pneumatically controlled (Please note: On the video the scorer is not connected to compressed air, therefore you cannot see any height adjustment, but the function is given)
Cutting width approx. 1250 mm
Control PowerPC
Operation via touchscreen
Control for cutting height, cutting angle, scoring unit
Digital display for cutting height, cutting angle, cutting width
Suction connection 120 mm diameter at the bottom, 80 mm diameter at the top of the protective hood
Cross table 1300 x 650 mm LW
Edging ruler with 2 stops, extendable up to 3200 mm, swivels according to scale
Protective hood arm can be swiveled away
Complete technical documentation available
Including various equipment and tools
Transport dimensions approx. 3200 x 2000 x 1800 mm LWH
Weight approx. 1200 kg
