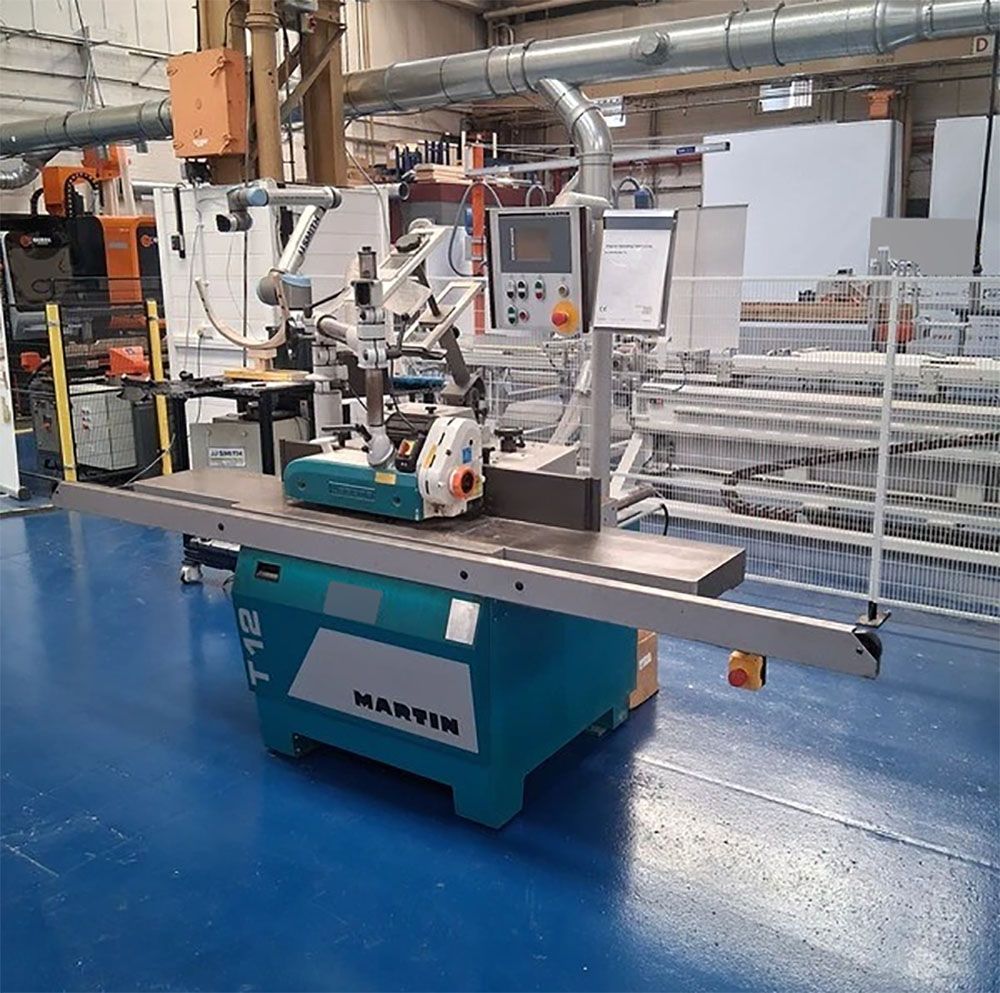

Martin T12

Spindle Moulder
Specification:
- Heavy duty basement for maximum stability and precise machining.
- Precision ground cast iron table.
- Overhead user friendly graphic colour touch screen control unit.
- Heavy duty fence assembly with precision movement - movement by hand wheel
- 1 off 11/4" dia spindle shaft (140mm working length) - SK40 'Dornfix' quick change system.
- 7.5hp motor - 3000,4500,6000,8000 and 10,000 spindle rpm.
- Centralised lubrication.

Complete with following options:
- Table extensions to both sides giving overall length of 2200mm with extendable workpiece support bar 3000mm overall length.
- Digital display of fence plate right on control screen with adjustment by handwheel (instead of just normal scale rule).
- Cast iron console for feed support
- Comfort feed support arm with quick rise / fall by handwheel with mechanical display of height position.
Heavy duty cast iron brackets and large steel clamping levers to ensure feed unit is securely locked in required position.
- Feed unit variomatic 3 roller with variable mechanical feed speeds of 3 to 17m/min.
On / off buttons for the feed unit integrated in to the control panel.
- Centrex cutter guard in Lieu of standard CPS guard.
