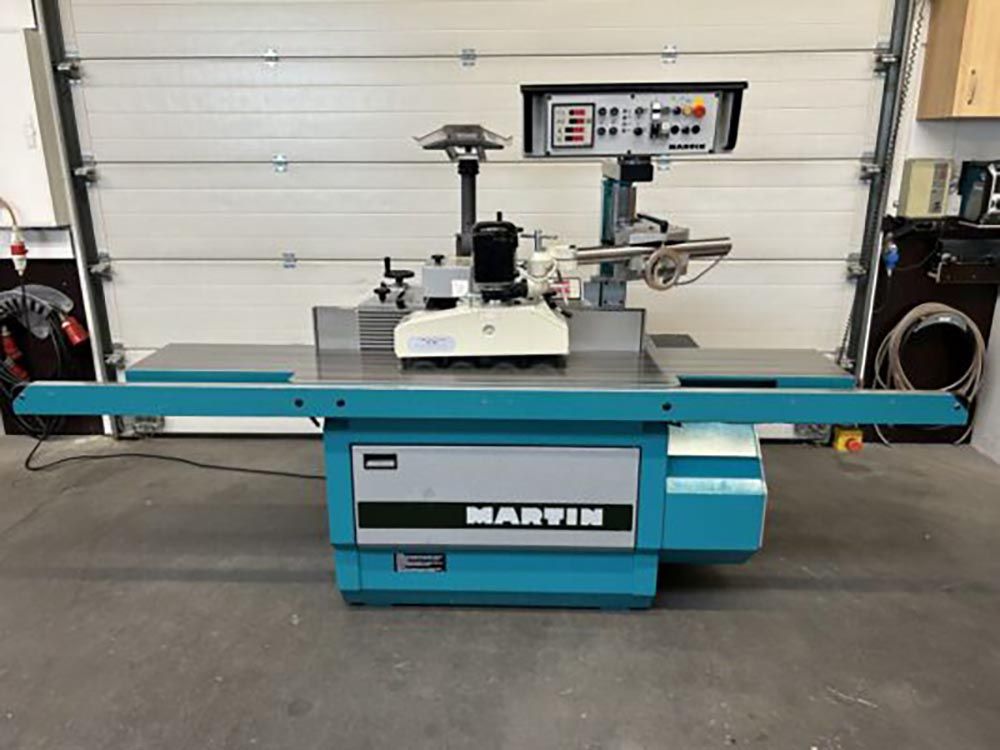

Martin T26 Tilting Spindle Milling Machine

Motor power 5 / 6 kW (rated current 19 A)
Swivel range: -45° to +45°
Max. tool diameter: 250 mm
Max. slotting tool diameter: 350 mm
Speeds: 3 / 4.5 / 6 / 9,000 rpm
Electrical Height and tilt adjustment

Top control panel
Pivoting control panel
Displays and control buttons at eye level
30 mm Dornfix spindle quick-change system with torque wrench (SK40)

Milling stop with digital position display
Swivel device
Centrex safety device
Aigner integral stop (each 650 mm long)

Support for feed mount:
Electric height adjustment of the feed
Height display (scale)
Integrated swivel device for the feed
Switching the feed on and off at the control panel

Table extension left and right
Extendable workpiece support with integrated emergency stop switch

Electro-pneumatic spindle lock
Electronic switching of the direction of rotation via selector switch
Central lubrication
Automatic Motor brake
Extraction connection: 2 x 120 mm
Weight: approx. 1,400 kg

Including WEGOMA VS48 feeder
4 rollers (new rubber rollers)
Year of manufacture 2000
0.6 / 0.8 kW
8 speeds

Including FRIED curved milling hood
Excellent condition! From the first owner.
