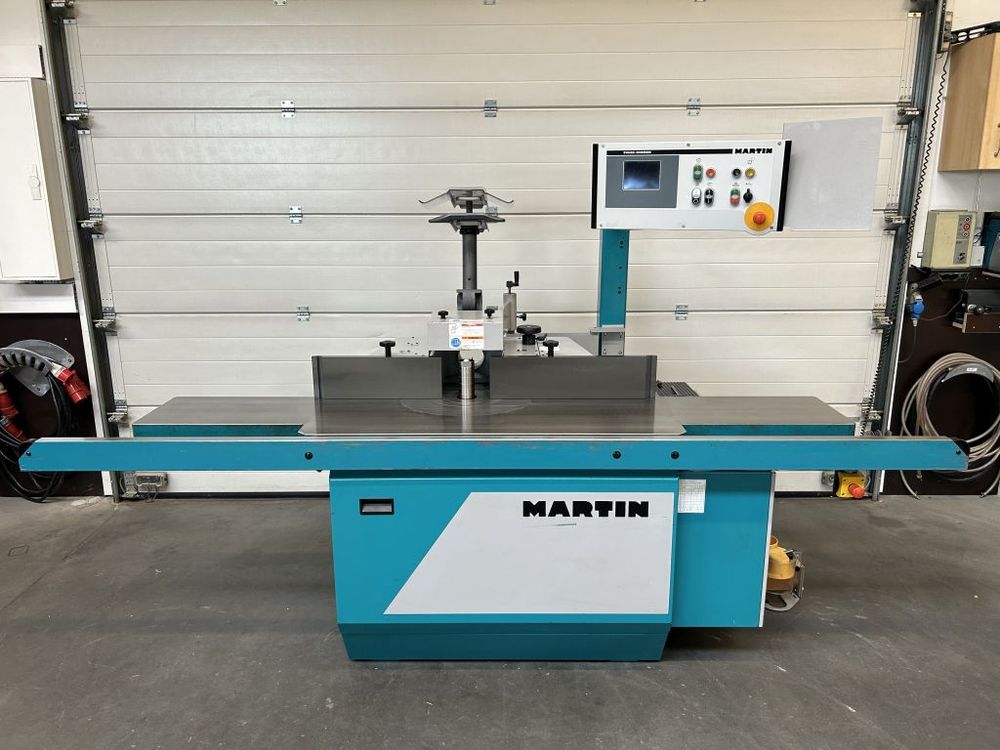

Martin T27 Fix Table router
EUROPE (Western and Northern)
(Fixed spindle router – not tiltable!)
Operating hours: 493 h (see last picture)
Motor power: 7.5 / 9.5 kW (reinforced motor power)
Rated current: 24 A
Speeds: 3rd / 4th / 5th / 6th / 8,000 / 10,000 rpm
Max. cutter diameter: 250 mm
Max. slotting tool diameter: 350 mm
Electric height adjustment (stroke: 150 mm)
Touchscreen control (program memory: 100 / tool memory: 500)
Table size: 125.5 x 90 cm
Cutting spindle: 30 + 40 mm
MARTIN cast iron stop jaws
Motor brake
Pneumatic spindle lock
Central lubrication
Extraction nozzle: 2 x 120 mm
Dimensions: 295 cm x 140 cm x 186 cm (L x W x H)
Weight: approx. 1,300 kg
Special features:
Electrically adjustable table opening (infinitely variable)
Electrically positioned router stop (mechanical infeed jaw)
Pivoting device for router stop
Centrex guard (Aigner)
Table extension left
Table extension right
Extendable workpiece support
Including FRIED curved router hood
Including original operating instructions and spare parts list
