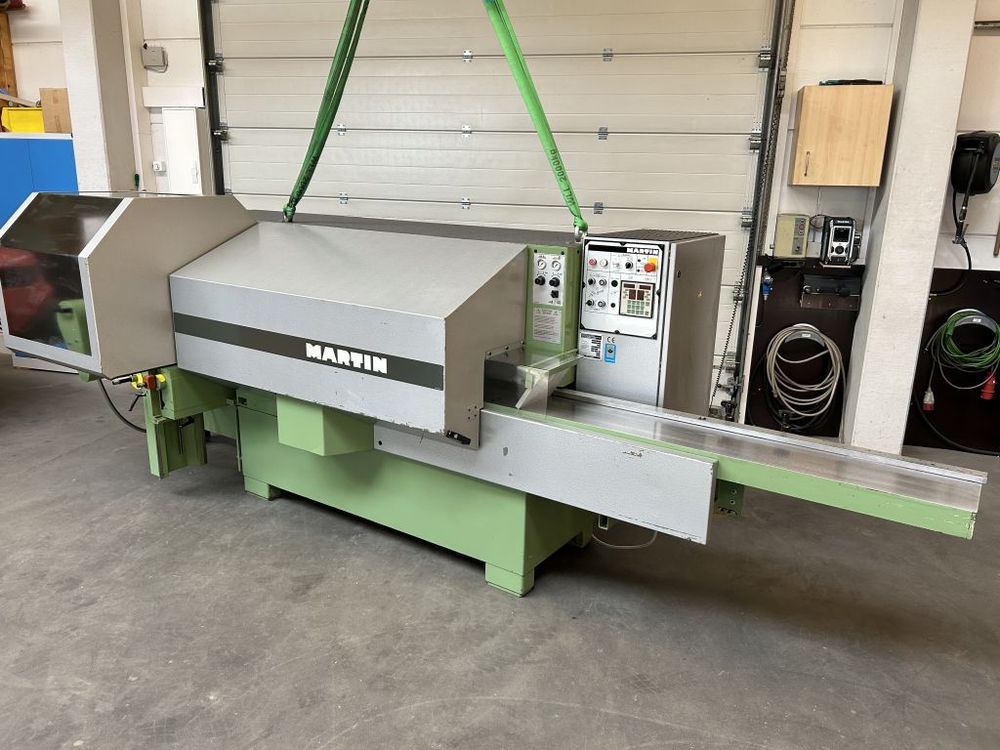

Martin T90
EUROPE (Western and Northern)
Four-Sided Planer
Rated current: 64 A
Max. planing width: 260 mm
Max. planing height: 160 mm
5 spindles: 4x Tersa planing heads + 1x universal spindle
Spindle arrangement: Bottom – Right – Left – Top – Universal
Spindles 1 – 4: 4-knife spindle – Tersa
Use of profile knives for bevels and radii possible (spindle R + L + O)
Spindle 5: Universal 40 mm spindle (max. tool diameter: 220 mm), pivoting (- 45° / + 90°)
Bottom: 5.5 kW
Left + Right: 5.5 kW
Top: 5.5 kW
Universal: 7.5 kW
Feed speed: 4 – 25 m/min. (infinitely adjustable)
Electronic positioning control (up to 100 measurement pairs can be stored)
Motor brake
Central lubrication
Special features:
Universal spindle
Table extension at the outfeed
Holder for the right-hand joining shaft
Including 8 new rubber extraction rollers
Extraction connection: 250 + 160 mm
Machine dimensions:
L: 524.5 cm
W: 166 cm
H: 165 cm
Weight: approx. 3,500 kg
Good original condition!
