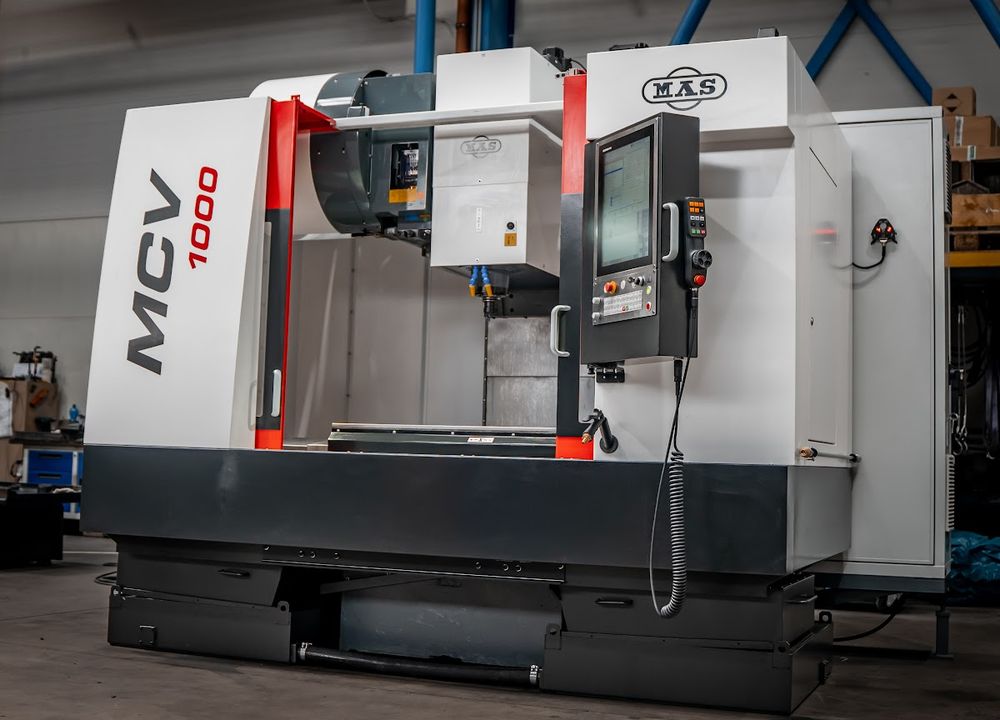

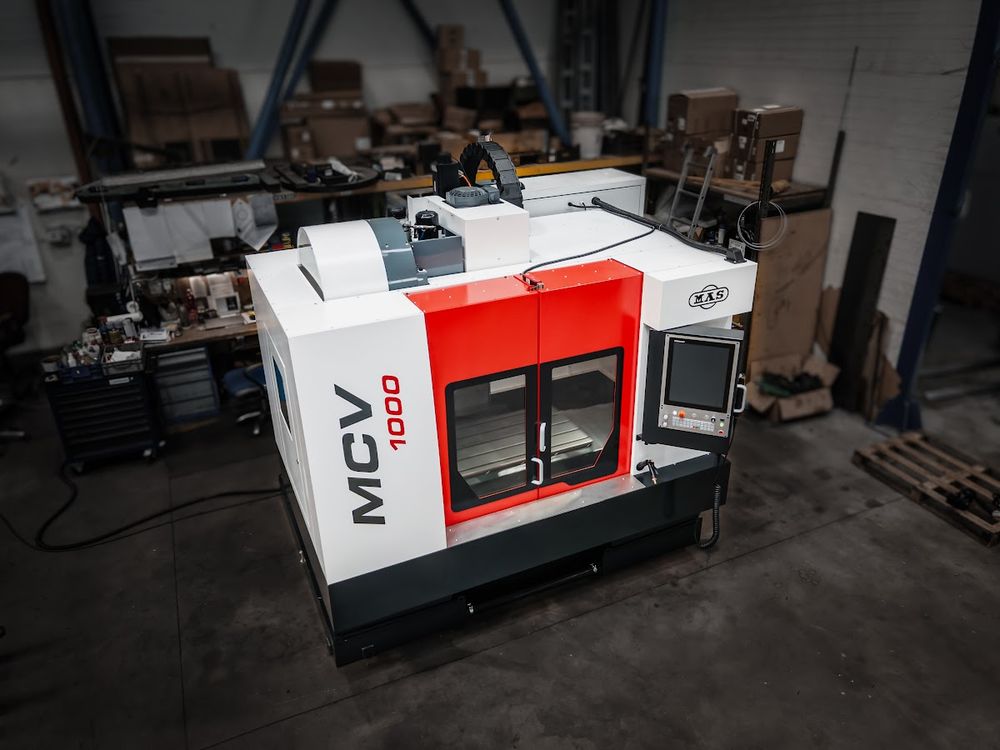

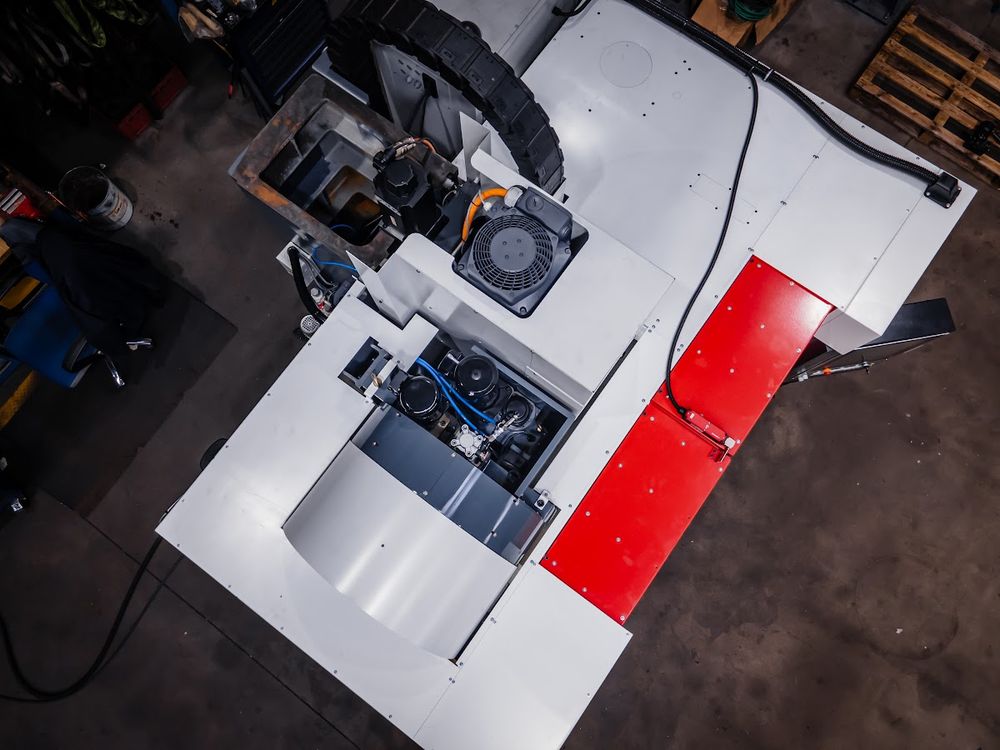

MAS Kovosvit MCV 1000
EUROPE (Central and Eastern)
Year: 2025
Control system HeidenhainTNC 620
Clamping area of table 1300 x 600 mm
Travel X-axis 1000 mm
Travel Y-axis 600 mm
Travel Z-axis 600 mm
Spindle speed 0 - 10000 /min.
Number of driven axes 3
Pressure of cooling 20 bar
Spindle taper ISO 40
Number of positions in magazine 24
Machine weight 5500 kg
Machine dimensions l x w x h 3000 (including baths) × 2700 × 2940 mm
Video: https://www.youtube.com/watch?v=6BFw1tyGKmA

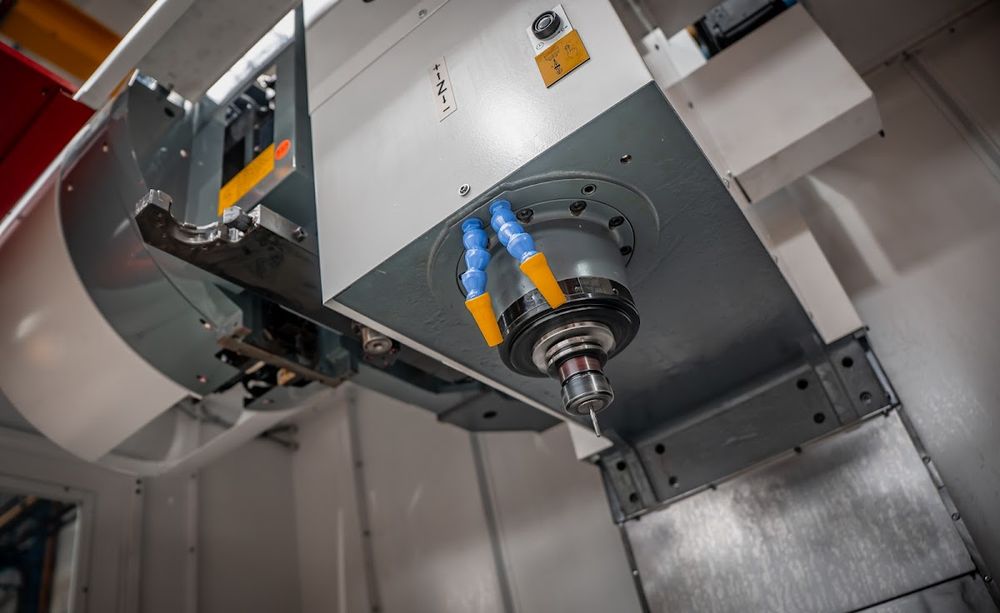

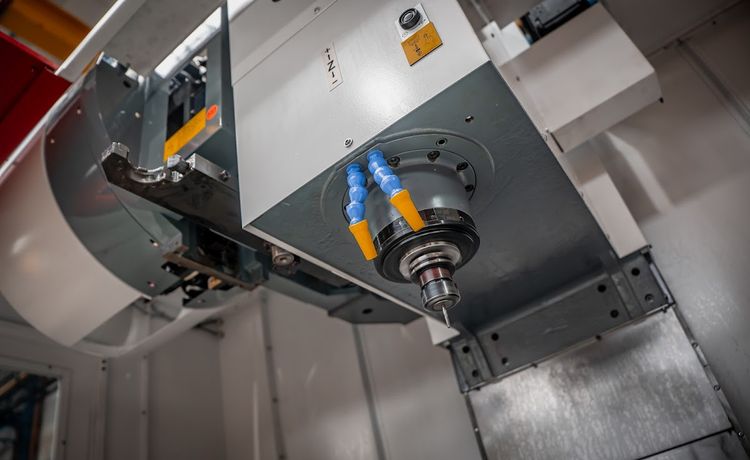

spindle motor: Siemens 1PH8 19.5kW

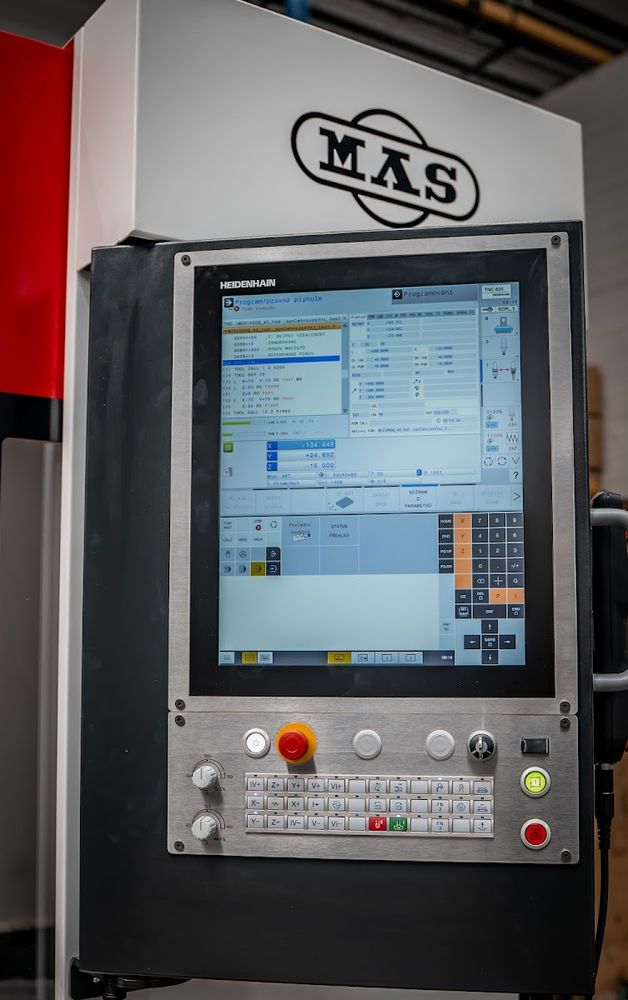

control system: Heidenhain TNC620 HSCI, screen MC 8410 touch screen
workpiece probe Heidenhain TS460
handwheel: YES Heidenhain HR510FS
measuring, rulers: Heidenhain LC415, EnDat 2.2
displacement motors: Heidenhain QSY
central tool cooling: Grunfos 20bar
external tool cooling: 10bar, Grundfos
hand rinse: gun 10bar

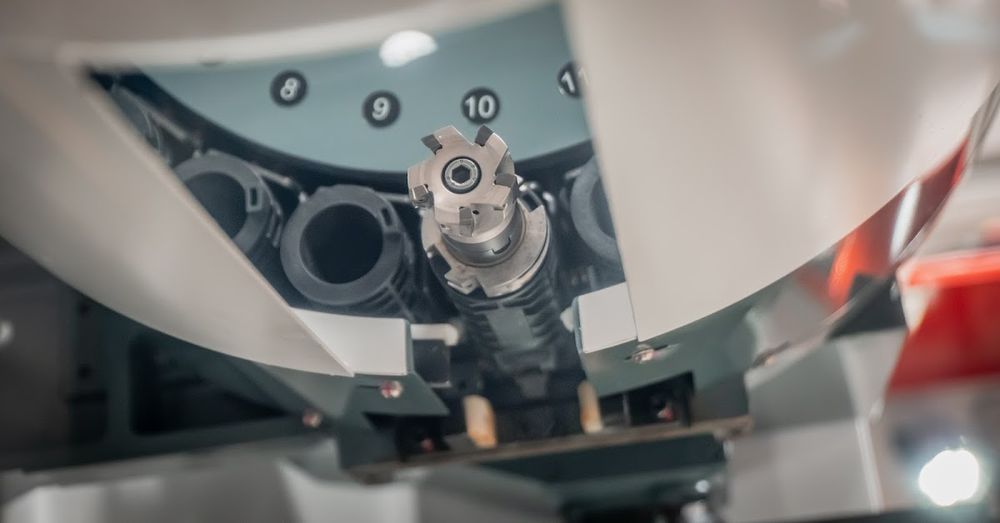

tool magazine: GIFU, drum, 24 positions
linear guide: NSK

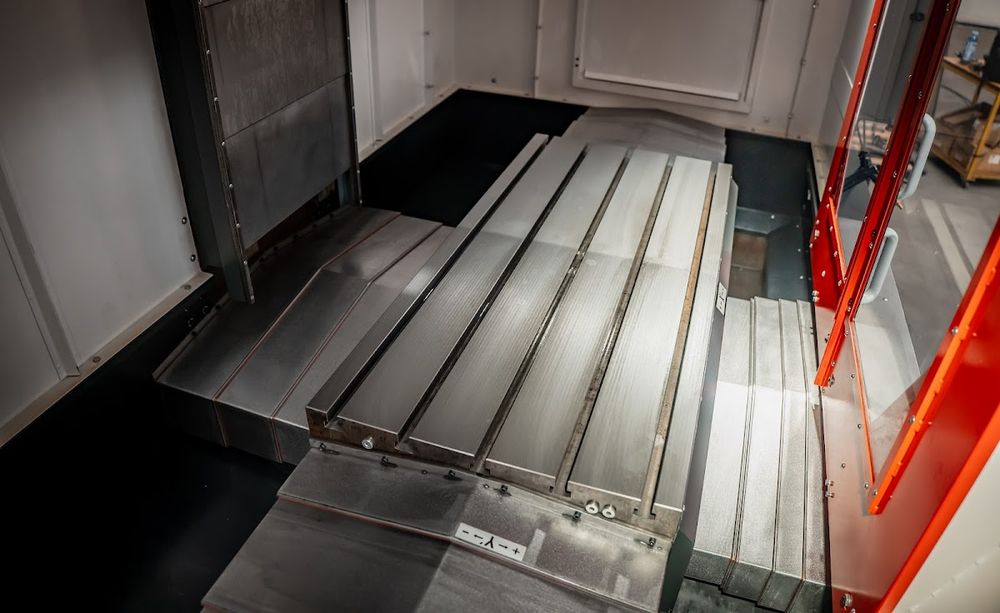

table clamping surface: 1300x600mm, T grooves 18.5H7
max. table load: 700kg
XYZ axis departures: 1000x600x660mm

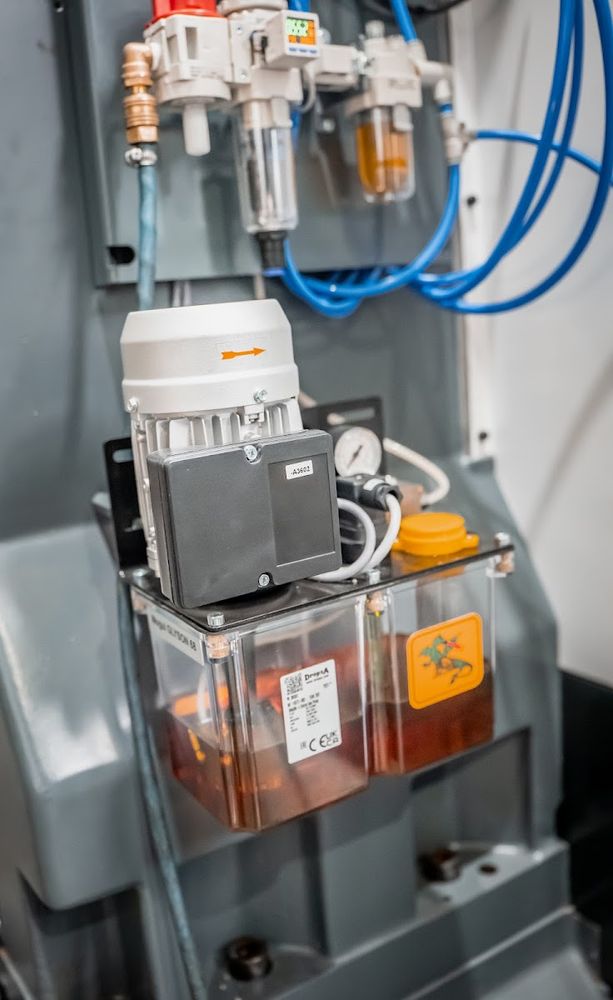

work air pressure: 6-7bar
