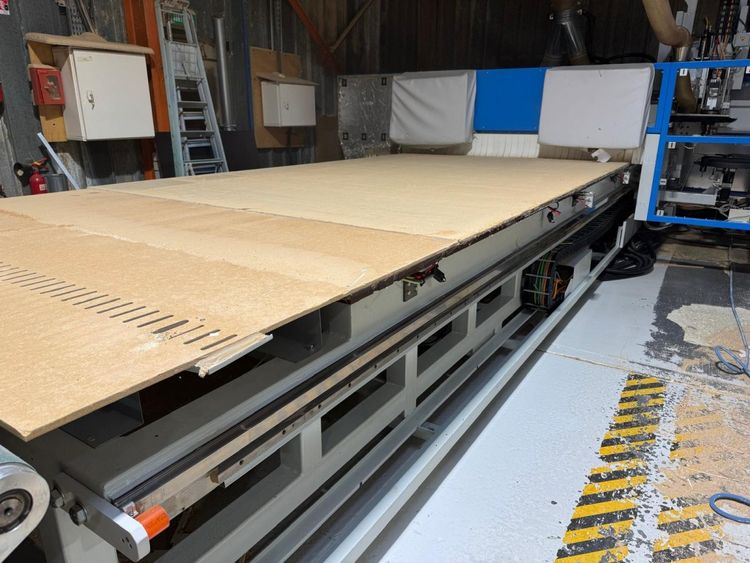

Masterwood MW21.42M

Nesting Machining Center
Condition: Used
Machining Capacity:
-X: 4220mm
-Y: 2196mm -Z: 190mm

Technical Specifications:
- Power Supply: 400V 50/60Hz
- 14kW Electromechanical Spindle - HSK 63 F
- Adapter Plate for HSK 63 F Indexing Heads, 16-Position Tool Magazine On-board HSK 63 F trolley
- 14 kW frequency inverter
- Cooling unit for 14 kW generator
- Head without drilling unit
- Gridded table
- Table pre-configured for loading/unloading with lifting platform for 2200 mm x 4200 mm panels
- Panel gripping device
- Unloading conveyor for 2200 mm x 4200 mm panels with unloading assistance device
- Two 250 m³/h vacuum pumps
- Panel thickness measurement device
- Automatic tool length measurement device
- Beckhoff CNC, Bosch motor
- Masterwork
- Four Becker 300 m³/h vacuum pumps to replace standard vacuum pumps
- Vertically movable roller press
- Distance between roller supports = 170 mm Approximately
- To accommodate an index head with a 150 mm diameter blade
- Maximum thickness template: 15 mm, 2 panels with a maximum thickness of 21 mm, for a total of 57 mm
- Front and rear protection with bumpers, maximum speed x-axis: 40 m/min
- Automatic height adjustment of the pusher system
- Fixed dust extraction for cleaning the machined part at the outfeed
- Possibility of reducing the worktable to 3800 mm if necessary
