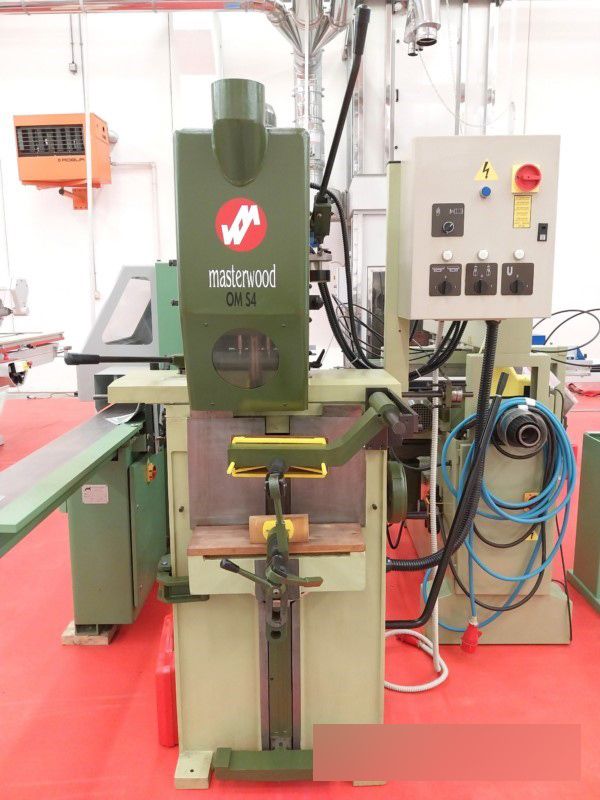

Masterwood OMS 4MM

Chain and lock mortising machine for all types of lock housing, for wooden doors,
window frames , furniture, shelves - CE Standard
Aggregate with 2 horizontal milling cutters for simultaneous execution of key slot and handle hole
Max depth of cut mm 150
Max length of cut mm 330
Transversal stroke mm 80
Max working height for doors mm 1000
Vertical worktable stroke mm 250
Mortising machine motor power output Kw 3
Vertical unit motor power output Kw 0,55
Horizontal unit motor power output Kw 1,84
Suction port diameter mm 120
Overall dimensions mm 1400 x 950 x 2100 h
Weight kg 535
