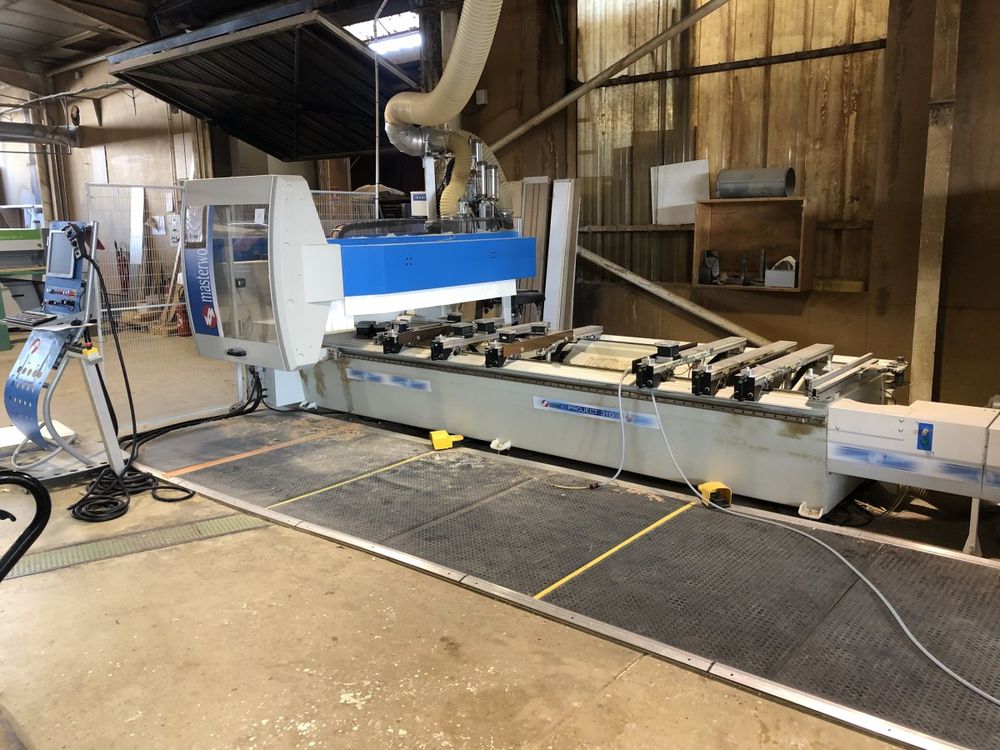

Masterwood PROJECT 310V4

Machining Center
Condition: Used
Availability: To be determined

Technical Specifications:
- 19-chuck drilling head
- Euro voltage 380/400/415V 50/60Hz
- Saw for longitudinal cuts
- 12 kW HSK 63 F electric spindle
- C axis
- 16-position tool magazine On-board HSK 63 F carriage
- 2.2 kW tilting horizontal milling unit
- 12 kW frequency inverter
- Tubeless table
- 6-bar tubeless table
- 6-bar table pre-set for clamping with vices
- 8 central stops, 2 lateral stops
- 100 m3/h standard vacuum pump
- Mobile control panel
- Multilingual PC
- Masterwork
- Mastercabinet
- CE safety standards kit
- Remote control with screen
- Chip conveyor
- 6 front stops, 2 lateral stops for plywood panels
- 6 suction cups 114x140mm - H 100
- 4 longitudinal suction cups 120x50mm H 100
- 2 suction cups 120x50mm - H 100 transverse
- Instruction booklet in French
- Packaging for ground transport
- 4 chip deflectors (right rotation)
