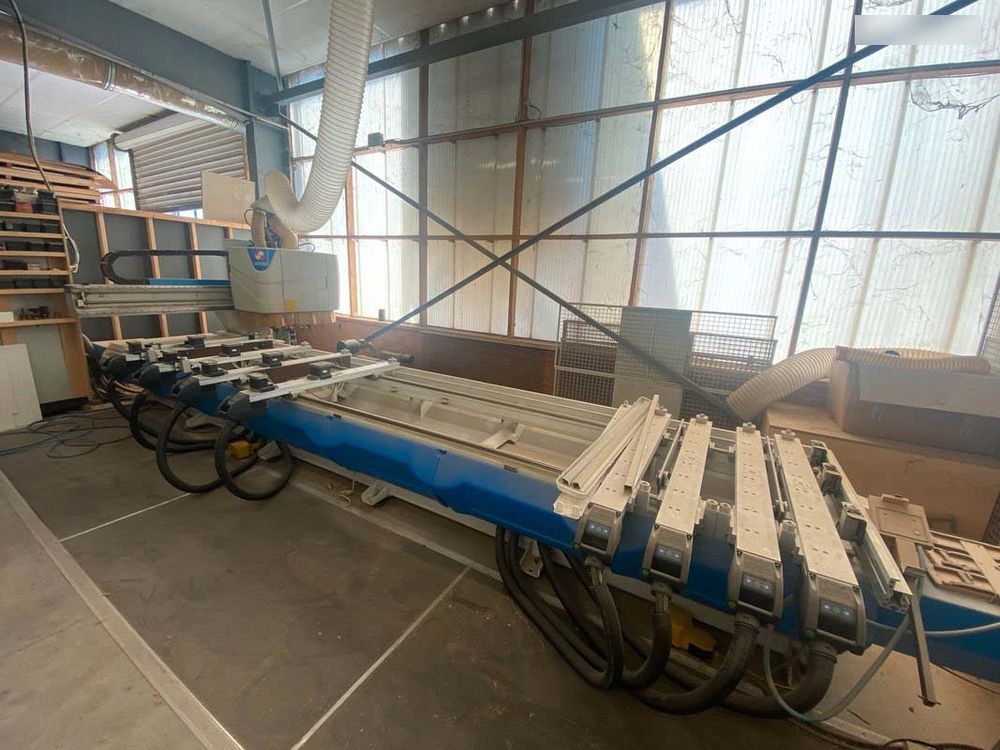

Masterwood Project 415

Machining Center
Condition: Used

Technical Specifications:
- Usable working area in X: 4970mm Y: 1390mm Z: 110mm
- 16-chuck drilling head
- 400V 50Hz Euro power supply
- 8 kW electric spindle - ISO30
- 8 kW frequency inverter
- Saw for longitudinal incisions
- 2.2 kW single-output horizontal milling unit
- 8-position tool magazine ISO30 carriage edge
- Support plate, suitable for indexing heads
- CE safety standards, version L
- Worktable with bars and suction cups
- Pneumatically locked table
- 2 stops per bar
- 8 x 114x140mm suction cups - H 100 (to be confirmed)
- 8 x 125x75mm suction cups - H 100 longitudinal (to be confirmed)
- 8 x 120x50mm suction cups - H 100 longitudinal (to be confirmed)
- 8 front stops, 2 additional side stops
- 250 m3/h vacuum pump
- CNC on external PC (PC included)
- 17" TFT screen
- PC and instructions in French
- Level 1 Master Cabinet
