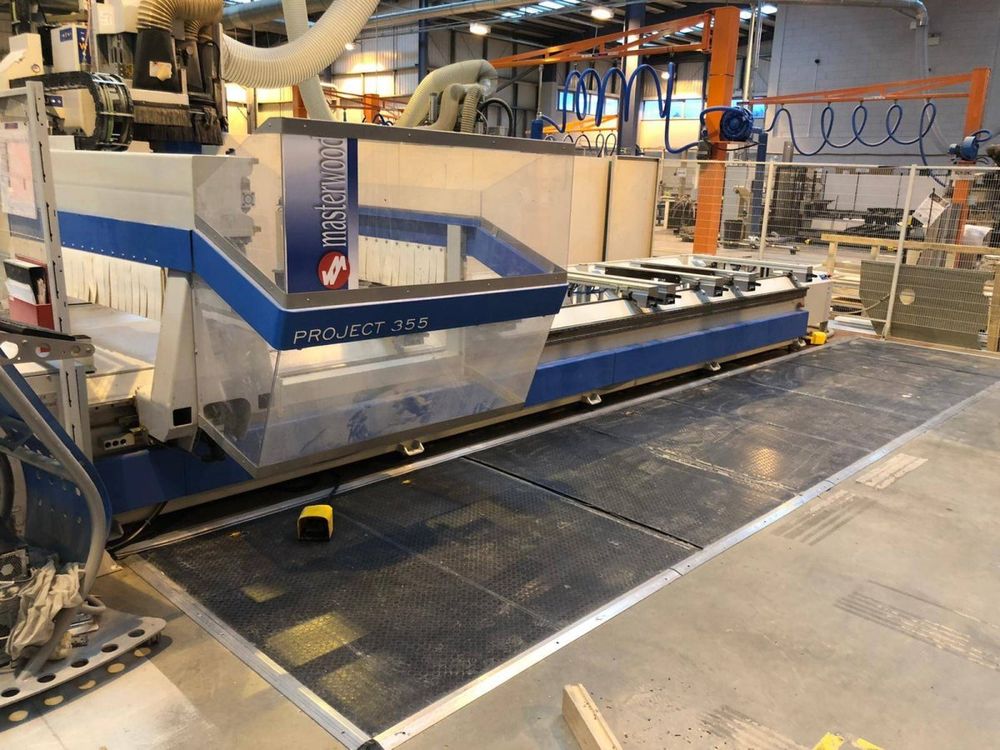

Masterwood Project 355L 5-axis

Machining Center
Condition: Used
Availability: To be determined

Technical Specifications:
- Machining range: X: 5005 mm Y: 1365 mm Z: 200 mm
- 19-chuck drilling head
- Euro voltage 380/400/415V 50/60Hz
- Saw for longitudinal incisions
- 5-axis 12 kW liquid-cooled bi-rotary milling unit
- 16-position rotating tool magazine on board the carriage
- 8-bar tubeless table
- Two 100 m3/h vacuum pumps
- Panel thickness sensor kit
- Hanger locking kit for 8 bars
- Belt kit Motorized suction cup for chip and waste removal
- 8 suction cups 114x140mm
- H 125mm (to be confirmed)
- 8 suction cups 125x75mm
- H 125mm Longitudinal (to be confirmed)
- 6 suction cups 125x75mm
- H 125mm Transverse (to be confirmed)
- Mobile control panel
- Special application: suction cups with integrated stop
- Masterwork
- Mastercabinet level 1
