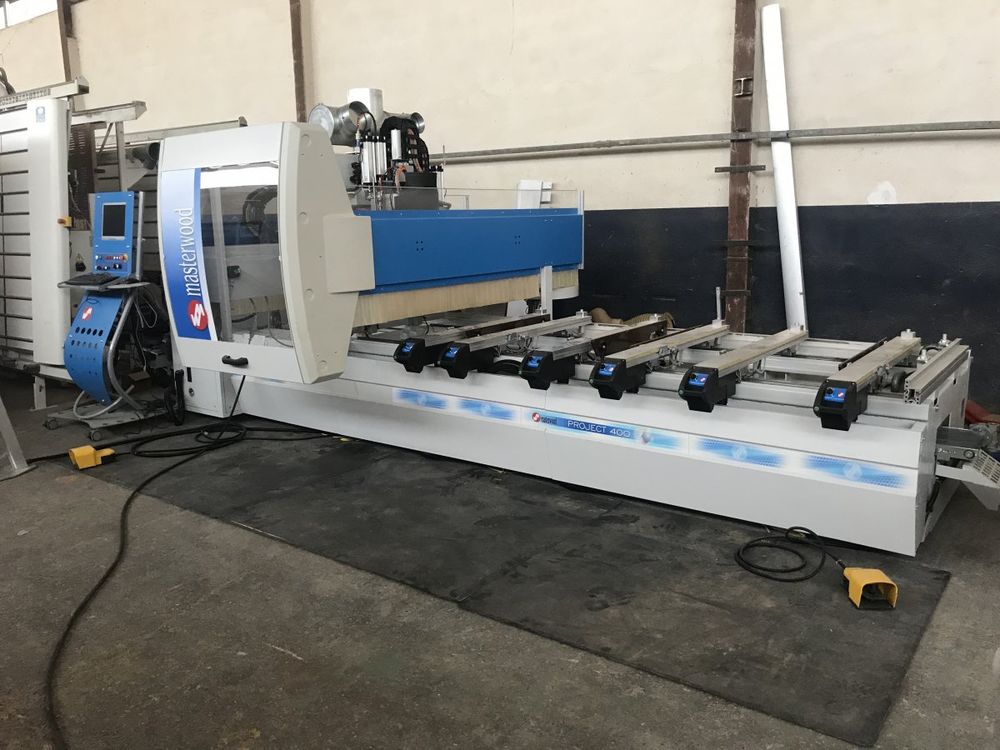

Masterwood Project 400 V3L

Machining Center
Condition: Used

Technical Specifications:
Maximum Panel Dimensions:
- X-axis Length: 5150 mm
- Y-axis Width: 1380 mm
- Z-axis Thickness: 110 mm
- Usable X-axis Working Area: 5150 mm - L version
- Euro voltage 380/400/415V 50/60Hz
- 19-spindle drilling head
- Longitudinal grooving saw
- 9 kW electro-spindle - HSK 63F
- C-axis
- 12-position tool magazine HSK 63F trolley on board
- 2.2kW horizontal milling unit in rear position
- Mobile control panel
- Multilingual PC
- 9kW frequency inverter
- Tubeless table
- 8-bar tubeless table
- 2 stops per bar
- 8-bar table pre-configured for clamping with vises - L version
- 100 m³/h vacuum pump STD
- Masterwork
- Mastercabinet
- CE safety standards kit, L version
- 8 rear stops, 2 side stops for plywood panels
- 2 x 100m³/h vacuum pumps
- Remote control with display
- Chip conveyor for L version
- "K" head incl. manual 1-output -10^/90^ blade d=180, milling cutter - HSK 63F
- 12 suction cups 114x140mm - H 100 (to be checked)
- 12 suction cups 125x75mm - H 100 longitudinal (to be checked)
- 12 suction cups 140 x 114 x 100 mm Schmalz (to be checked)
- Chip deflector (right rotation) (to be checked)
- Instruction booklet in French
