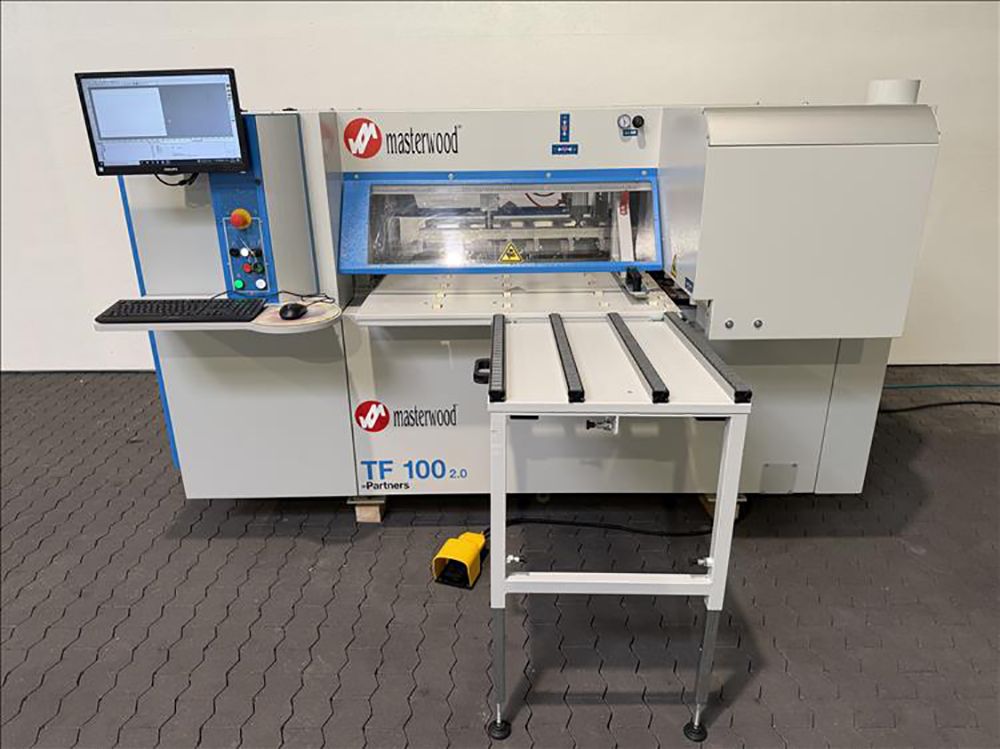

Masterwood TF 100 2.0

Machining Center - Used
Continuous machining
Ball screws on all axes
Network card for remote maintenance
Integrated control cabinet
Saw unit for grooving in the X-direction
Pick-up tool changer
Automatic central lubrication
Sensor for panel measurement
New drill set
New grooving blade
Clamex optional
Door machining optional

Technical Data :
Min. workpiece length X: unlimited
Min. workpiece length Y: 1,000 mm
Min. workpiece thickness: 60 mm
Number of vertical drilling spindles: 10
Number of horizontal double drilling spindles in the X-direction: 2
Number of horizontal double drilling spindles In the Y direction: 1 piece
Saw blade diameter of saw unit: 120 mm
Number of tools in the changer: 6 pieces
Dust extraction port diameter: 150 mm
Compressed air connection: 6-8 bar
Dimensions (L x W x H): 1,920 x 2,818 x 1,620 mm
Weight: 1,500 kg
