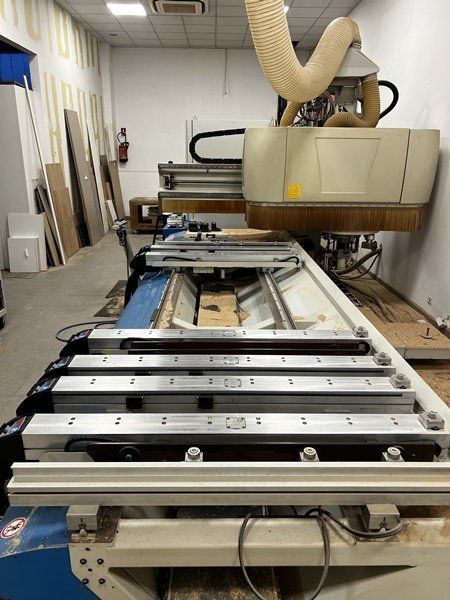

Masterwood PROJECT 416L

Machining Center
Condition: Used

Technical specifications:
Useful working area: X: 5200mm Y: 1360mm Z: 175mm
Drilling head with 16 chucks
Power supply: 400V 50Hz Euro power supply
Position 1
14 kW electric chuck - HSK 63 F
C-axis - gear rotation
8-position rotating tool magazine at the front
8-position HSK63 tool magazine at the carriage edge
Fixed head with 1 blade holder outlet d=250 - HSK 63 F
"K" head including manual Single-outlet - 10^/90^ blade d=180, HSK 63 F cutter
Fixed head with 2 cutter holder outlets - HSK 63 F
14 kW frequency inverter
Cooling unit for 19 kW unit
CE safety standards
Table with 2 suction cups per support
Tubeless table with 6 bars/12 suction cups
2 suction cups 114x140mm - H 100 mm per support
2 stops per bar
Table with 6 bars pre-disposed For clamping with vises (plus kit)
6-bar positioning, suction cups on display
2 pneumatic horizontal vises
250 m3/h vacuum pump
Swarf conveyor belt
Remote control (hold-start override)
NC on external PC (PC included)
17" TFT screen
PC and instructions in French
Master cabinet level 1
