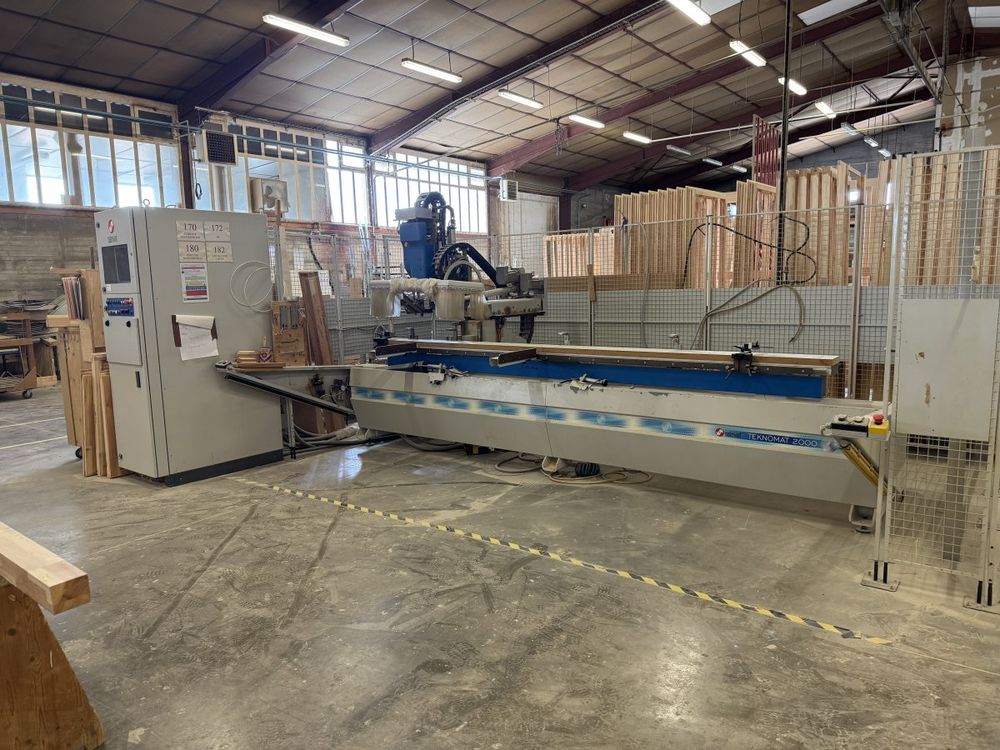

Masterwood Teknomat 2000TF

Notching and Grooving Machine
Condition: Used
Availability: In Stock

Composition:
Groups: 1-2 on a digital tilting stand -7° to 90°
1st Milling Group: High-frequency electro-spindle, 18,000 rpm, 3.3 kW
2nd Drilling Group: Electro-spindle, 0.75 kW, single and double chuck. Single-pin screw system. Double-pin screw system.

Technical Specifications:
Machining Capacity:
X: 3000 mm
Y: 150 mm
Z: 350 mm

- Table Dimensions: 3000 mm usable area
- Control via separate cabinet
- Masterwood MW313 Software
- Program Supplied: for ANUBA hinges (3 models)
- Program for mounting two closely spaced ANUBA hinges
- Program for drilling a single hole
- Milling program for the lock housing and for the hanger

- Speeds:
70 m/min on the U-axis
40 m/min on the V-axis
15 m/min on the W-axis
- Digital up/down and tilt adjustment
- Digital counter on the control panel
- Special features: safety barrier, infrared beam on the front panel
- Suction diameter: 1 x 200 mm centralized
- Amps: 20
- Machine dimensions: 5900 mm x 3300 mm, cabinet dimensions: 1200 mm x 600 mm
- Weight: 1900 kg
