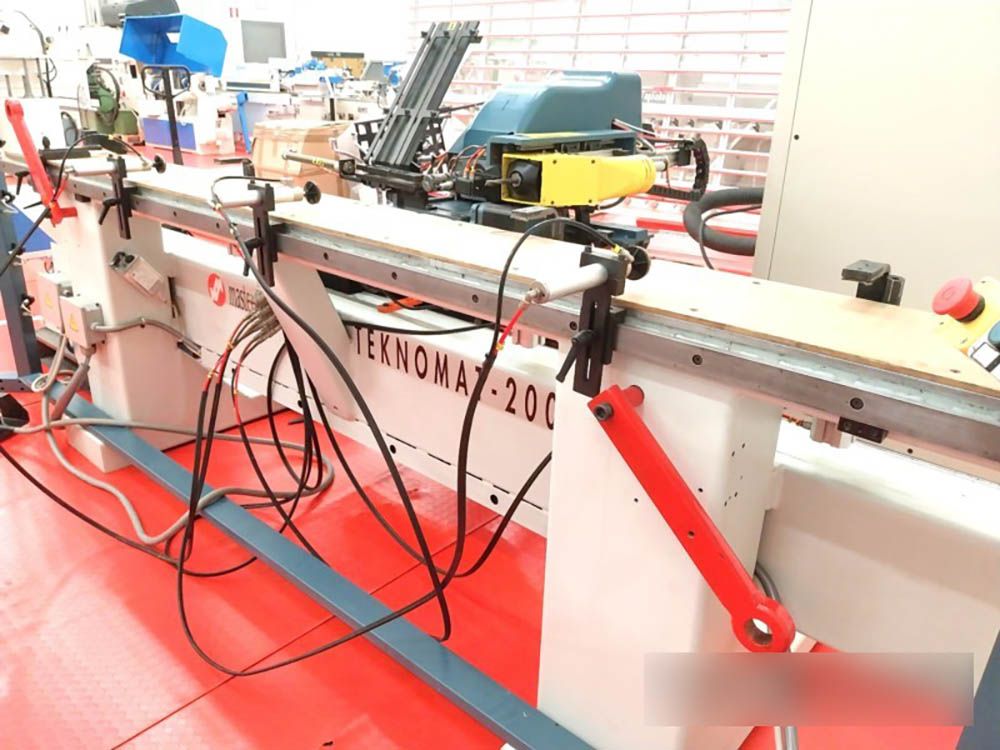

Masterwood TEKNOMAT 2004 F 4 Axis

CNC Working center hinge boring inserting - milling machine with 4 controlled axis
and router for milling all types of hardware - CE standard

Technical data:
Table size mm 3300 x 260
Max distance between the 2 external anuba mm 2700
Max height with head positioned at 0° mm 200
Max thickness with head positioned at 90° mm 120
Anuba diameter mm 14-16
Anuba unit with double louder for male and female anuba
Double probe with automatic rotation - Drilling motor Hp 1 - Screwing motor Hp 1
Router unit composed of: Milling motor Hp 3 - Rpm 0/18000 - Linear and circular interpolation - Inclination controlled by control from -7° - +90°.
Axis speed: X axis mt/min 40 - Y axis mt/min 7 - Z axis mt/min 7
Numerical control for continuous management of 4 axis, interactive graphic programming - Graphic video 10"
N° 3 Front pneumatic pressers
Safety protections CE standard with perimeter walls
Total power Kw 10
Compressed air 6 bar
Overall dimensions :
Machine mm 3700 x 1600 x 1500 h - Kg 1800
Electric panel mm 600 x 1200 x 2200 h - Kg 260
