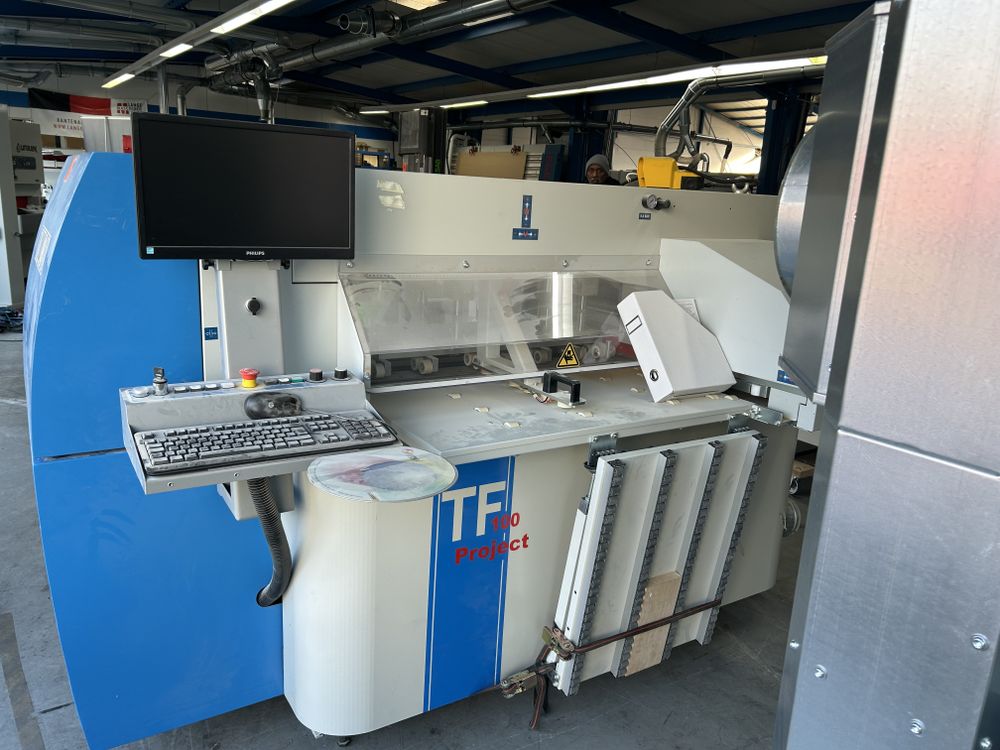

Masterwood TF 100

Used machine
Condition: Functionally tested

Technical specifications:
Axes:
X-axis: Max. workpiece length: unlimited
Min. workpiece length: 250 mm
Travel speed: 0-25 m/min.

Y-axis: Max. workpiece width: 1,000 mm for all units
Min. workpiece width: 80 mm
Travel speed: 0-50 m/min.

Z-axis: Max. workpiece thickness: 60 mm
Min. workpiece thickness: 10 mm
Travel speed: 0-20 m/min.

The minimum and maximum workpiece sizes depend on the weight and the length-to-width ratio!

Units:
Milling unit with 4.5 kW motor (frequency-controlled)
including MASTERWORK software extension
Speed: 1,000 to 18,000 rpm
including integrated extraction control (only the drill head is vacuumed during drilling, only the milling unit during milling)

4-station tool changer for ISO 30 taper
16 mm drill head: Vertical spindles in X direction: 5 pieces
Vertical spindles in Y direction: 5 pieces
Horizontal double drilling spindle in X direction:
2 + 2 pieces

Horizontal double drilling spindle in Y direction:
1 + 1 piece

Drill spindle spacing: 32 mm
Drill spindle speed: 4,000 rpm
Motor: 1.7 kW
Grooving saw: in X-direction
Speed: 4,000 rpm
Max. saw blade diameter: 125 mm
Motor: 1.7 kW (The grooving saw is integrated into the drill head)
Program: MASTERWORK MACHINE VERSION

Additional data:
Required air pressure: 8 bar
Air consumption: max. 750 l/min.

Extraction:
Volume: 2,000 m³/h
Air speed: 25 - 30 m/sec.
Extraction nozzle: 1 x 150 mm

Other features:
- Air tables in the work area
- Roller table in the infeed and outfeed
- Sensor for plate measurement
- Ball screw and linear guides
- Rack and pinion drive
- Central lubrication
- Import of DXF files

Machine dimensions: 2100 x 2410 x 1510 mm
Weight: approx. 1300 kg
Required air pressure: 8 bar
Air consumption: max. 750 l/min.
Extraction: Volume: 2000 m³/h
Air speed: 25 - 30 m/s
Extraction nozzle: 1 x 150 mm
