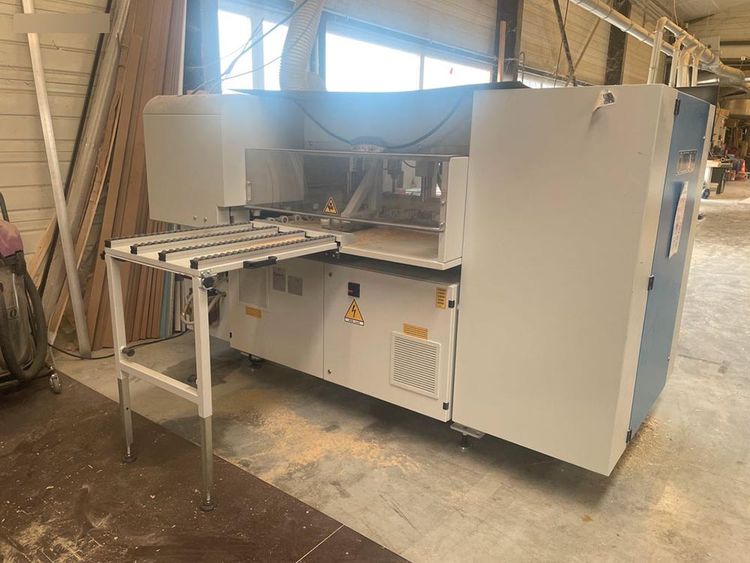

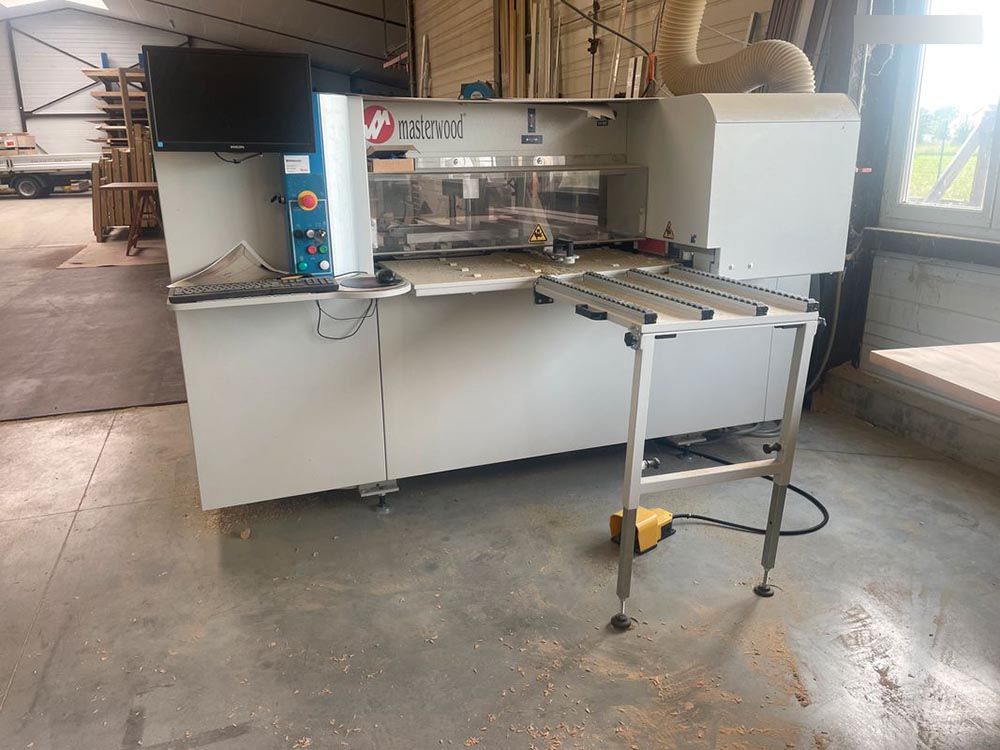

Masterwood TF100 2.0
Ref :
2722565-15-AW
Condition :
Used
Manufacturer :
Masterwood
Model :
TF100 2.0
Nb Of Axis :
-
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Min. workpiece length 250mm - no max. workpiece width 80mm - max. 1000mm.
Thickness 10mm - max. 60mm
Travel speed:
X 25m/min
Y 50m/min
Z 25m/min
1.7kW drill head with 16 chucks. 5 independent vertical chucks on the x-axis
5 independent vertical chucks on the y-axis
2 double horizontal chucks on the x-axis
1 double horizontal chuck on the y-axis
Sawing unit on the drilling head for incisions or cutting on the x-axis
4.5 kW electro-chuck for ISO 30 taper
Rotation speed: 1000 to 18,000 rpm
6-position tool magazine
CLAMEX assembly angle drive option
Masterwork programming software
