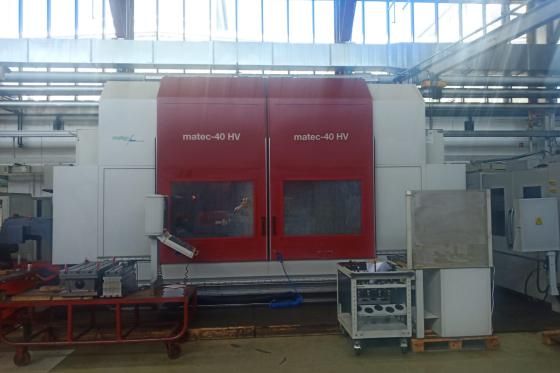

Matec 40 HV 3 Axis

X-Axis Travel: 3000 mm
Y-Axis Travel: 800 mm
Z-Axis Travel: 1100 mm
Feed Rate X-Axis: 48000 mm/min
Feed Rate Y-Axis: 80000 mm/min
Feed Rate Z-Axis: 48000 mm/min
B-Axis: -3° to +105°
Number of Controlled Axes: 4
Control: HeidenHain iTNC530
1 Axis CNC Swivel Head Infinitely Variable
Axis Drive with Ball Screw Drive
Roller Linear Guides in All Axes
Direct Path Measuring Systems
Full Work Area Enclosure with Roof
Chip Conveyor
Coolant System
Coolant Through Spindle: 25 bar
Measuring Probe Renishaw RMP60
Table Length: 3500 mm
Table Width: 835 mm
Table Load: 3500 kg
Spindle Taper: ISO 50
Spindle Power: 68 kW
Spindle Speed: 8000 rpm
Tool Changer: 40 Positions
Machine Length: 6500 mm
Machine Width: 3600 mm
Machine Height: 3940 mm
Machine Weight: 19000 kg
