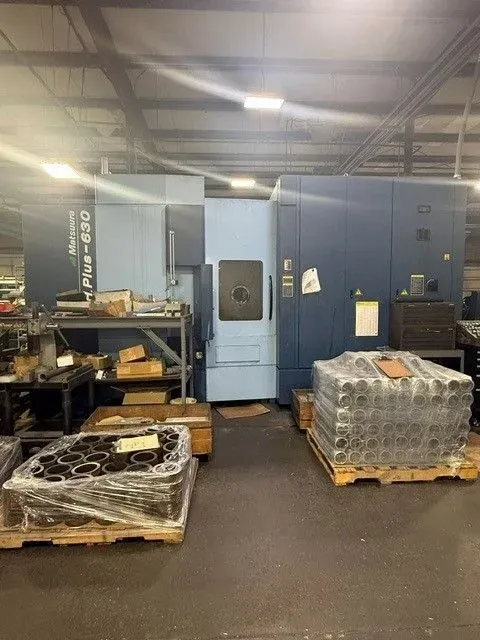

Matsuura H-PLUS 630 4 Axis

X-axis travel: 41.33"
Y-axis travel: 36.22"
Z-axis travel: 38.97"
B-axis: 0.001° indexing
Rapid traverse X-axis: 1,968 IPM
Rapid traverse Y-axis: 1,968 IPM
Rapid traverse Z-axis: 1,968 IPM
Cutting feed rate: 1,968 in/min
Control: Matsuura G-Tech 30i CNC (Fanuc-based)
Scale feedback system on X, Y, Z axes
Manual Guide i
Rigid tapping
Coolant through spindle: 800 PSI
Overhead coolant flush
Spindle chiller
Chip conveyor
Internal spiral augers
Rotary clear window
Pallet size: 24.8" × 24.8"
Number of pallets: 2
Pallet capacity: 2,465 lb
Spindle speed: 12,000 RPM
Spindle motor: 40 HP
Spindle taper: 50
Automatic tool changer: 60 stations
Maximum tool diameter: 4.3" / 12.9"
Maximum tool length: 23.62"
Maximum tool weight: 44 lb
Tool change time: 2 sec
(2) Kurt vice tower tombstones
Machine weight: 45,900 lb
