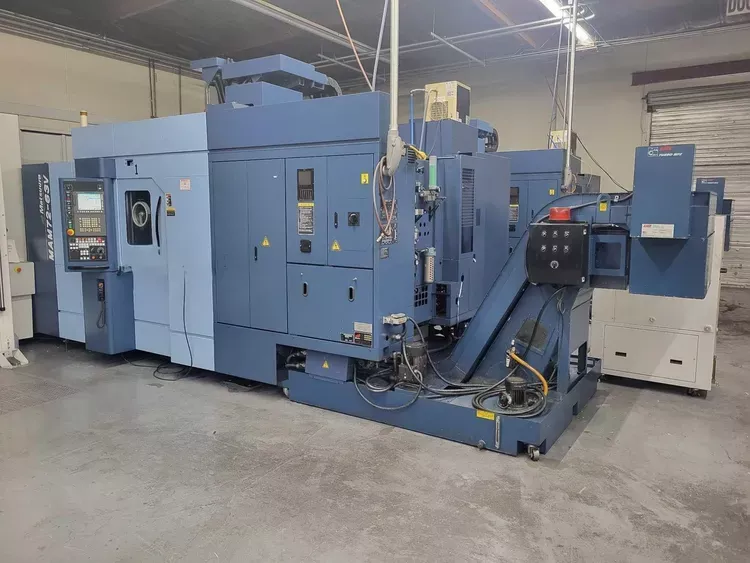

Matsuura MAM 72-63V 5 Axis

MATSUURA MAM 72-63V
2014

X travel 29.921"
Y travel 33.268"
Z travel 25.984"
Spindle speed 12,000 RPM
Tool capacity (ATC) 480
Table size (W) 19.68"
Table size (L) 19.68"
A-axis tilt range -120° to +120°
C-axis index 1°
Coolant through spindle high pressure
Part probe
Tool probe with automatic tool length measurement
Rapid traverse X axis 2,362.2 IPM
Rapid traverse Y axis 2,362.2 IPM
Rapid traverse Z axis 2,362.2 IPM
CNC control Matsuura G-Tech 30i
Pallet size 500 x 500 mm
Load size (X x Z) 750 x 750 mm
Load rotational diameter 800 mm
Load height 900 mm
Load weight 750 kg
Fastems system pallet storage 12
Fastems system length 6,880 mm
Fastems system width 2,250 mm
Fastems system height 2,800 mm
1 OMP 400 probe
1 NC-4 probe
1 LNS chip conveyor
1 ATS CoolJet 1000 PSI coolant system
1 spiral auger
1 3-light tower
2 pallets included with machine
12 pallets included with Fastems system
