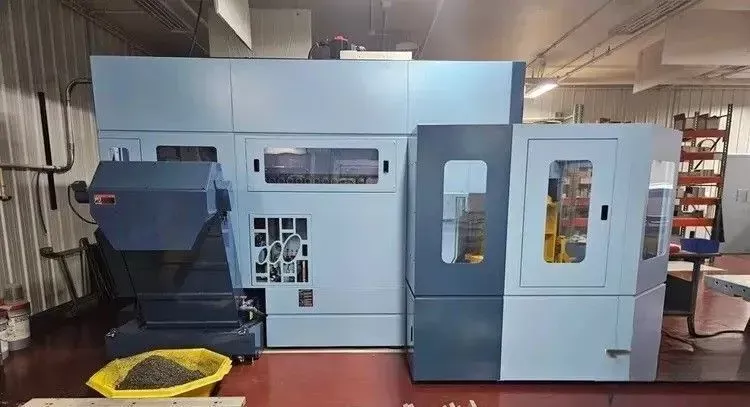

Matsuura MX-520 PC4 5 Axis

MATSUURA MX-520 PC4
2022

X travel 24.8"
Y travel 22.04"
Z travel 20.07"
Spindle speed 12,000 RPM
Tool capacity (ATC) 90
Table size (W) 19.7"
Table size (L) 19.7"
Main motor power 30 HP
Spindle taper BT 40
A-axis tilt range -125° to +10°
C-axis rotation 1° index
Coolant through spindle high pressure
Coolant pressure 1000 PSI
Part probe
Tool probe with automatic tool length measurement
Multiple pallets
Pallet system number of pallets 4
Rapid traverse X axis 1574 IPM
Rapid traverse Y axis 1574 IPM
Rapid traverse Z axis 1574 IPM
CNC control FANUC G-TECH 31i-B5
Machine dimensions 188" x 123" x 117"
Machine weight 20,800 lbs
Fanuc G-TECH 31i-B5 controller
12,000 RPM Maxia integral spindle
90-tool ATC magazine
4-pallet PC system
XYZ + A/B scales and feedback
Coolant through spindle preparation
Spiral chip conveyor inside machine
AD-TAP function
Work light
Thermal displacement compensation
MMU Value Package High Speed-Precision & 5 Axis Package
High Speed Skip Nano Smoothing/Nano Smoothing 2
Optional block skip 9 data server package
Control memory 8 MB
Optimum torque acceleration/deceleration
Coordinate rotation tool center point control
Tool life management
Look-ahead block expansion to 1000 blocks
Tool offset 999 pairs
Tilted work plane command
Workpiece coordinate system 300 sets
3-dimensional cutter compensation
Number of registered programs 1000
Inverse time feed
Mosnic drum filter
Lift-up chip conveyor
Renishaw OMP 400 spindle probe
Renishaw NC4 laser tool setter with blue laser
Coolant through spindle ChipBlaster M30
