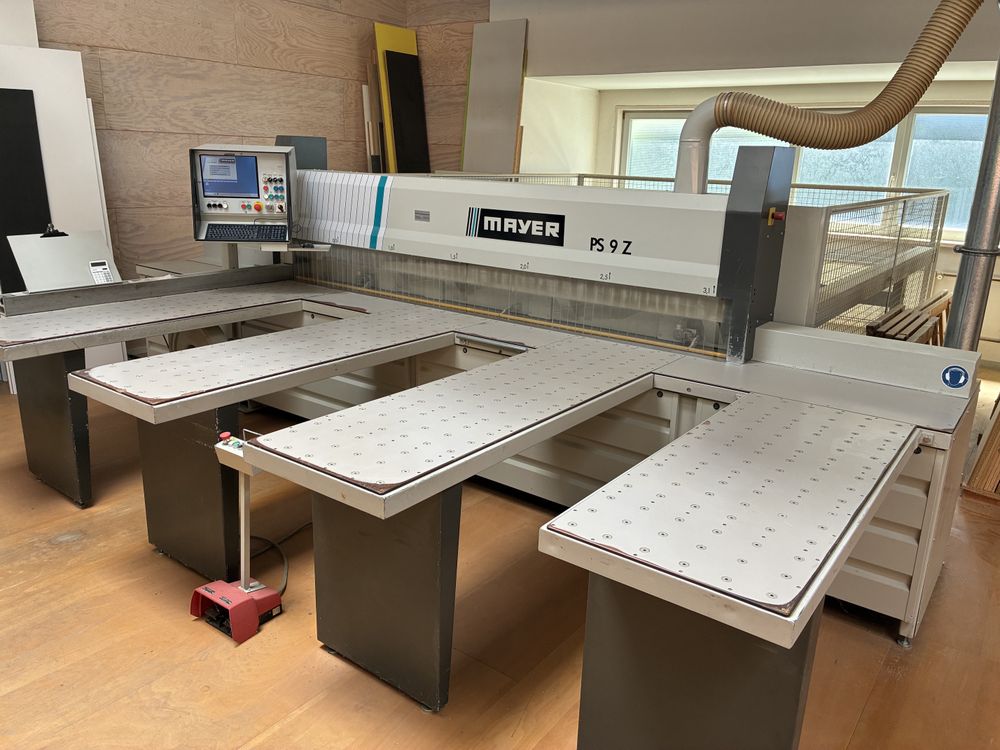

Mayer PS 9 Z Eco - 3100

400 V, CE and GS dust-tested
9 kW saw motor with 355 mm dia. saw blade
1.1 kW scoring motor with 127 mm dia. conical scoring blade and pneumatic lowering during return stroke
Max. saw blade projection 105 mm
Cutting height 80 mm
Automatic cutting height adjustment (2 stages)
Cutting length 3100 mm
Left-hand angle table 2000 x 600 mm
1 loading table 1500 x 600 mm
2 auxiliary tables 2000 x 600 mm
all tables feature air-cushion design
Material pusher with 6 stack clamps (double-finger design), 80 mm opening width
Rack-and-pinion drive and dual-sided guidance
Feed speed 25 m/min, return speed 60 m/min
Separate measuring system using precision measuring racks and rotary encoders; rear support table with 9 double-roller tracks
Travel path 3100 mm, resulting in a cutting area of ​​3100 x 3100 mm; automatic.
Cutting length adjustment via sensor technology
Saw carriage feed continuously variable from 5–70 m/min
Return speed 80 m/min; automatic pressure device (20–1200 mm behind the pressure beam)
Automatic trimming device; electronically controlled, continuously variable cutting height adjustment
Fully automatic execution of grooving operations with selectable groove depth
WINN 97 electronic control system featuring a 14" color monitor
Intel Pentium III processor (500 MHz), 6.4 GB hard drive, 64 MB RAM, integrated 3Com network interface,
2 serial and 1 parallel port, SVGA graphics adapter, and Windows 98 operating system.
