Mazak CNC CONTROL 2,000 RPM QTN NEXUS 450MYII/3000 3 Axis

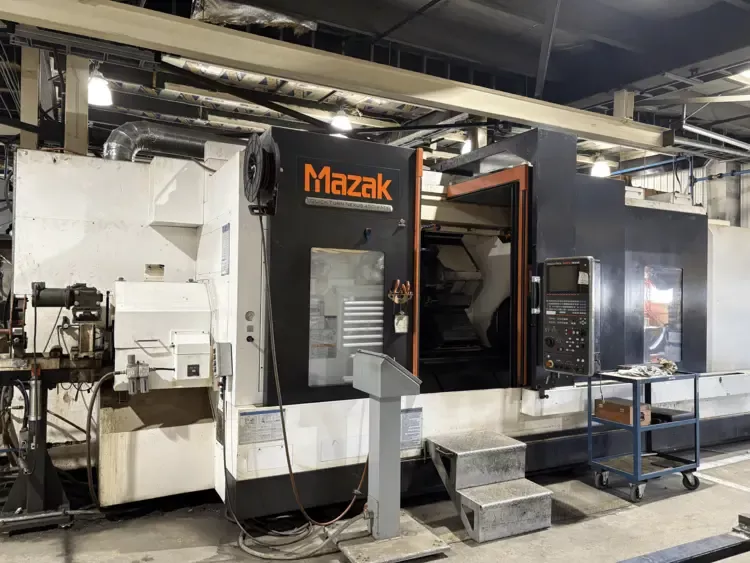

MAZAK QTN NEXUS 450MYII/3000
Year: 2012

Swing over bed: 33.07″
Turning diameter: 22.84″
Turning length: 118.2″
Distance between centers: 125″
Spindle nose 1: A2‑15
Spindle bore diameter 1: 7.28″
Bar capacity 1: 7.2″
Spindle speed 1: 2,000 RPM
Spindle horsepower 1: 50 HP
X1‑axis travel: 13.38″
Z1‑axis travel: 119.8″
Y1‑axis travel: 8″
Rapid traverse X1: 1,181 IPM
Rapid traverse Z1: 1,290 IPM
Rapid traverse Y1: 750 IPM
Turret positions: 12
Turret rotary tool speed: 400 RPM
Turret rotary tool horsepower: 10 HP
Tailstock quill diameter: 5.1″
Tailstock taper: MT‑5
Tailstock quill travel: 5.1″
Programmable tailstock: yes
Tailstock travel: 112″
Machine weight: 38,000 lb
Control: Mazatrol MATRIX CNC color control

Automatic tool eye
Chip conveyor
SMW Autoblock K4‑2SW programmable steady rest
EIA/ISO programming
Spiral cycle support
3‑D contouring
Coordinate rotation, geometric scaling, rotation functions
External data I/O
Threading capability
Inverse time threading
Auto ATLM
Polar coordinate input
Comparison stop function
Variable 600 program sets
EIA helical tapping cycle
EIA pattern cycle
Tilted work plane
Auto pecking cycle
Thread start point compensation
Re-thread cycle
Pitch error compensation
External deceleration feature
Chuck‑jaw jogging for front‑mount chuck
Standard tooling package
19″ autoblock EP460/185 3‑jaw air chuck with 7.28″ through bore
Super‑flow V8 1000 PSI through‑tool coolant
Auto door open/close
