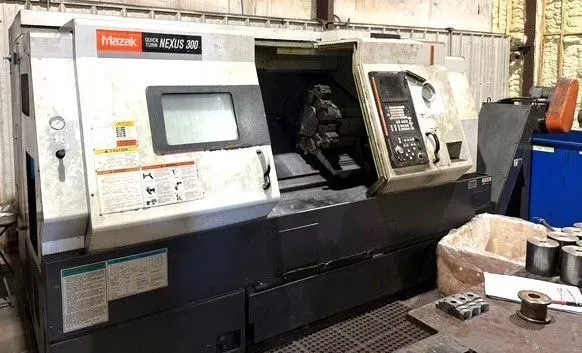

Mazak Mazatrol Fusion 640T control 4,000 RPM QUICK TURN NEXUS 300 2 Axis

X-axis travel: 8.85"
Z-axis travel: 49"
Rapid traverse X-axis: 1,181 IPM
Rapid traverse Z-axis: 984 IPM
Mazatrol Fusion 640T control
Quick Tool Setter Auto Tool Eye
Programmable tailstock and quill
Side discharge chip conveyor
Bar capacity: 3.00"
Maximum swing: 26.77"
Standard machining diameter: 10.39"
Maximum machining diameter: 16.53"
Spindle motor: 35/30 HP (30 min/cont.)
Spindle bore: 3.46"
Spindle torque: 422 ft/lbs
Spindle speed: 4,000 RPM
Spindle nose: A2-8
Turret type: Drum turret
Number of tools: 12 station
Tool shank height: 1.00"
Boring bar shank diameter: 1.5"
Turret index time: 0.2 sec (one position)
Tailstock center: MT No. 5
Machine height: 78.73"
Floor space requirement: 137.8" x 80"
Machine weight: 16,535 lbs
