Mazak CNC CONTROL 3,300 RPM NEXUS QTN 350II/2000 3 Axis

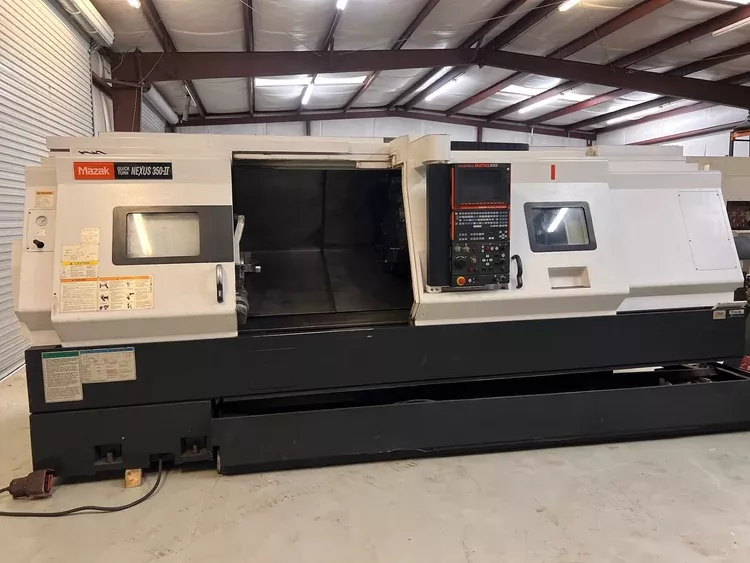

MAZAK NEXUS QTN 350II/2000
Year: 2011

Swing over bed: 26.8″
Machining length: 82″
Distance between centers: 83.8″
Distance between spindles: 0″
Chuck size (spindle 1): 12″
Spindle nose 1: A2‑11
Spindle bar capacity 1: 4″
Turning diameter (shaft): 16.5″
Spindle speed 1: 3,300 RPM
Spindle horsepower 1: 40 HP
Spindle bore diameter 1: 4.4″
W‑axis travel (sub spindle): 0″
X‑axis rapid traverse rate (X1): 787 IPM
Z‑axis rapid traverse rate (Z1): 984 IPM
Turret configuration 1: 12‑station
Turret rotary tool spindle speed 1: 0 RPM
Turret rotary tool horsepower 1: 0 HP
Tailstock quill diameter: 3.94″
Tailstock taper: MT 5
Tailstock quill travel: 0″
Programmable tailstock: yes
Tailstock travel: 55.8″
Number of axes: 2
Bar capacity: 4″
Live tooling: no
Sub spindle: no

Automatic tool eye
Chip conveyor
EIA/ISO programming
Spiral cycle support
Built‑in live center (MT 5)
Mazatrol MATRIX CNC control
High‑pressure coolant
EIA 3‑D contouring
Rotation, geometric, scaling functions
External data I/O
Threading capability
Thread start point compensation
Re‑thread cycle
Variable 600 program sets
EIA helical tapping
EIA pattern cycle
Tilted work plane
Inverse time programming
Programmable tailstock function
