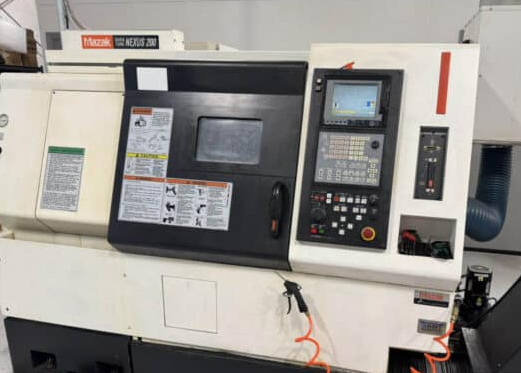

Mazak CNC CONTROL 5000 RPM NEXUS 200 2 Axis

MAZAK NEXUS 200
2003

Maximum swing: 24.0″
Swing over cross slide: 14.0″
Maximum machining diameter: 13.8″
Maximum machining length: 20.1″
Bar work capacity: 2.0″
X-axis travel: 7.5″
Z-axis travel: 21.1″
Spindle speed: 5000 RPM
Spindle nose: A2-6
Spindle bore: 3″
Turret type: 12-station drum turret
Turret index time: 0.2 sec per step
Rapid traverse X-axis: 1181 IPM
Rapid traverse Z-axis: 1299 IPM
Spindle drive motor: 35 HP
Tailstock travel: 21.65″
Tailstock center: MT 5
Floor space: 99″ x 70″ x 72″
Machine weight: 11000 lbs
Mazatrol Fusion Nexus 640T control
Automatic tool eye
Programmable tailstock live center with dead quill
Chip conveyor
8″ Kitagawa hydraulic chuck
All available tooling and manuals
