Mazak CNC (MAZATROL SMOOTH Ai CONTROL) 18,000 RPM VARIAXIS I-600 5 Axis

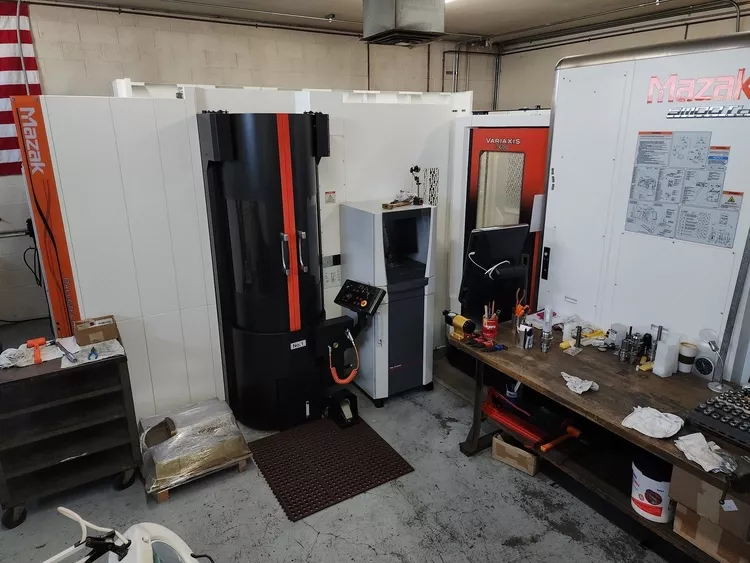

MAZAK VARIAXIS I-600
Year: 2022

Number Of Tables / Pallets 12
Table Size - L 20"
Table Size - W 20"
Weight On Table 1,102 lb
Main Spindle Horse Power 47 hp
Spindle Nose To Table 0"
Main Spindle Speeds 18,000 RPM
Main Spindle Taper 63

X - Axis Travel 20.08"
Y - Axis Travel 35.83"
Z - Axis Travel 20.08"
A - Axis Travel -120 to +30 Degrees
C - Axis Travel Table Indexing 360

Rapid Traverse Rate - X 2,362 in/min.
Rapid Traverse Rate - Y 2,362 in/min.
Rapid Traverse Rate - Z 2,205 in/min.

Cutting Feed Rate 2,205 in/min.
Automatic Tool Changer 80
Tool Diameter 5"
Tool Length 20"
Tool Weight 66 lb
Machine Weight 33,000 lb

Control CNC (MAZATROL SMOOTH Ai CONTROL)
Dimensions 86.61" x 156.69" x 125.47" high
1000PSI HIGH PRESSURE COOLANT THROUGH SPINDLE T8
12 PALLET PALLETECH SYSTEM 2 LEVEL EXPANDABLE
5 AXIS SPLINE INTERPOLATION AND FINE SPLINE INTERPOLATION
COOLANT THRU SPINDLE
EIA/ISO FUNCTION
GIS SUPPLIED TS27R PROBE KIT
HIGH SPEED MACHINING SOFTWARE AND SMOOTH LINK
HSK63 SPINDLE TAPER
LNS REAR CHIP CONVEYOR
MIST COLLECTOR
RMP600 RADIO PART PROBE
SIMULTANEOUS 5 AXIS
SMC PLUS SETTINGS
SMOOTH SET AND INSPECT
TOOL TIP POINT CONTROL
