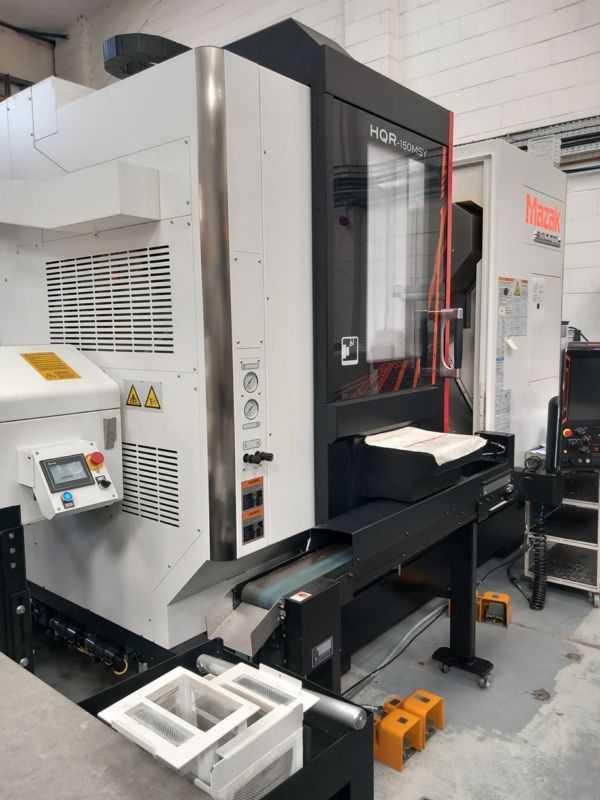

Mazak CNC CONTROL 5000 rpm HQR-150MSY 3 Axis

X/Y/Z travel (upper turret): 175 / 100 / 520 mm
X/Y/Z travel (lower turret): 111 / 70 / 580 mm
W-axis stroke: 625 mm
W-axis positioning speed: 30,000 mm/min
C-axis rapid traverse: 555 rpm
Control: CNC
Bar work capacity: 65 mm
Max swing (upper/lower turret): 320 / 270 mm
Max machining diameter (upper/lower turret): 300 / 172 mm
Distance between chuck jaw faces: 620 mm
Main spindle speed: 5000 rpm
Main spindle nose: A2-6
Main spindle bore: 76 mm
Main spindle motor (30 min / cont.): 15 / 11 kW
Sub spindle speed: 6000 rpm
Sub spindle nose: A2-5
Sub spindle bore: 61 mm
Sub spindle motor (30 min / cont.): 11 / 7.5 kW
Rotary tool spindle speed: 6000 rpm
Rotary tool spindle motor (10 min): 5.5 kW
Turret type: 12-position drum turret (VDI)
Number of tools: 12
Turning tool shank: 20 mm
Boring bar shank diameter: 32 mm
Turret indexing time: 0.2 sec / 1 step
Milling capacity: Drill 16 mm
Milling capacity: Endmill 16 mm
Milling capacity: Tap M16 × 2.0
Feedrate (upper turret X/Y/Z): 30,000 / 26,000 / 40,000 mm/min
Feedrate (lower turret X/Y/Z): 24,000 / 20,000 / 40,000 mm/min
Power requirement: 39.2 kVA
Coolant tank capacity: 251 L
Machine dimensions (L × W × H): 2862 × 2290 × 2413 mm
Machine weight: 9100 kg
HAINBUCH collet chuck system with collets
Selection of live tooling
Cutting time: 380 hours
