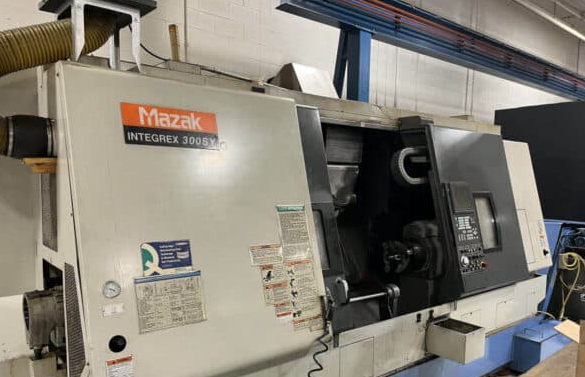

Mazak Mazatrol Fusion 640MT Control 3500 rpm INTEGREX 300SY 3 Axis

X Axis Travel: 22.83″
Y Axis Travel: ±4.13″
Z Axis Travel: 43.11″
Rapid Traverse X: 1181 ipm
Rapid Traverse Y: 591 ipm
Rapid Traverse Z: 1181 ipm
Mazatrol Fusion 640MT Control
Mazatrol and EIA/ISO Programming
IC Memory Card Interface
RS-232C Interface
PCMCIA Slots
Variable Feed Rate Control
Tool Life Monitoring
Tool Wear Compensation
Automatic Tool Eye
Background Tool Path Check
Machining Navi-Monitor
Milling Spindle Multi-Orient
Y Axis Capability
C Axis Spindle Drive
Parts Catcher
Chip Conveyor
Bar Capacity: 3.0″
Maximum Swing: 24.01″
Maximum Swing Over Carriage: 17.71″
Maximum Swing Over Carriage: 24.01″
Main Spindle Speed: 35 rpm
Main Spindle Speed: 3500 rpm
Main Spindle Motor Power: 35 HP
Main Spindle Nose: A2-8
Main Spindle Bore: 3.46″
Second Spindle Speed: 35 rpm
Second Spindle Speed: 3500 rpm
Second Spindle Motor Power: 25 HP
Second Spindle Nose: A2-6
Second Spindle Bore: 2.99″
Rotary Tool Spindle Speed: 15 rpm
Rotary Tool Spindle Speed: 6000 rpm
Rotary Tool Motor Power: 20 HP
Tool Magazine Capacity: 40
Tool Type: KM63
10″ Hydraulic Chuck
