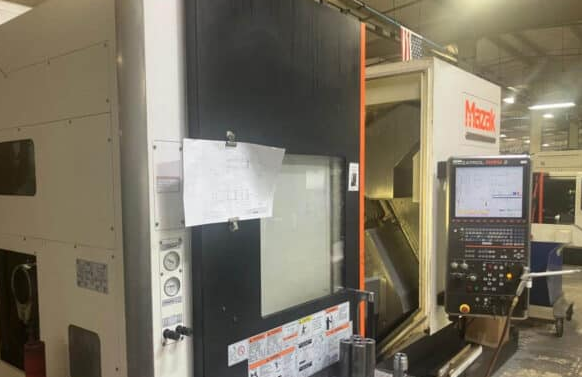

Mazak Mazatrol Matrix 2 Control 5000 rpm HYPER QUADREX 200MSY 7 Axis

X1 Axis Travel: 8.2″
Y1 Axis Travel: ±2.0″
Z1 Axis Travel: 29.875″
X2 Axis Travel: 5.5625″
Y2 Axis Travel: +0.75″ / -2.0″
Z2 Axis Travel: 32.125″
W Axis Travel: 34.075″
Mazatrol Matrix 2 Control
Parts Catcher
Bar Capacity: 2.56″
Maximum Swing Upper Turret: 14.56″
Maximum Swing Lower Turret: 12.598″
Maximum Machining Diameter Upper: 13.54″
Maximum Machining Diameter Lower: 8.26″
Maximum Distance Between Chuck Jaws: 33.875″
Spindle Speed: 35 rpm
Spindle Speed: 5000 rpm
Spindle Motor Power: 20 HP
Spindle Motor Power: 30 HP
Spindle Torque: 344.4 ft-lbs
Spindle Nose: A2-6
Spindle Bore: 2.99″
Rotary Tool Spindle Speed: 35 rpm
Rotary Tool Spindle Speed: 6000 rpm
Rotary Tool Motor Power: 7.5 HP
Turret Stations: 12
8″ Chuck
