Mazak control mazak mazatrol smart cnc color control 4500 rpm QUICK TURN UNIVERSAL 250 2 Axis

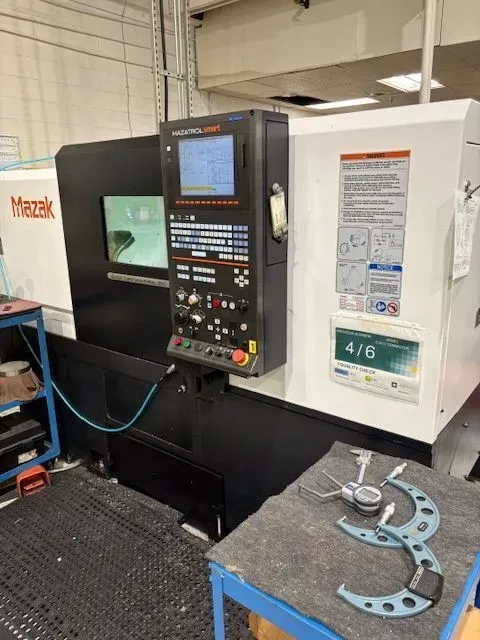

MAZAK QUICK TURN UNIVERSAL 250
2015

swing over bed 27.4"
machining length 18.83"
distance between centers 22.08"
chuck size 8"
spindle nose A2-6
maximum turning diameter 16.25"
spindle speed 4500 rpm
spindle horsepower 20 hp
x-axis travel 8.5"
z-axis travel 25"
rapid traverse rate x-axis 1181 in/min
rapid traverse rate z-axis 1181 in/min
turret configuration 12 stations
tailstock taper #5
programmable tailstock yes
tailstock travel 14.17"
number of axes 2
bar capacity 2"
tailstock yes
live tooling no
sub spindle no
control mazak mazatrol smart cnc color control
machine weight 11000 lbs
mazatrol smart cnc conversational control
automatic tool eye
programmable tailstock with center
manuals included
tool holders included
kitagawa 8" 4-jaw hydraulic chuck with hard and soft jaws
tool block holders and wedge block included
eia functions
spiral function
rotation function
geometric input
threading function
polar coordinate input
eia 3d compensation
comparison stop
g54.1 coordinate system
600 variable sets
pitch error compensation
chip conveyor
