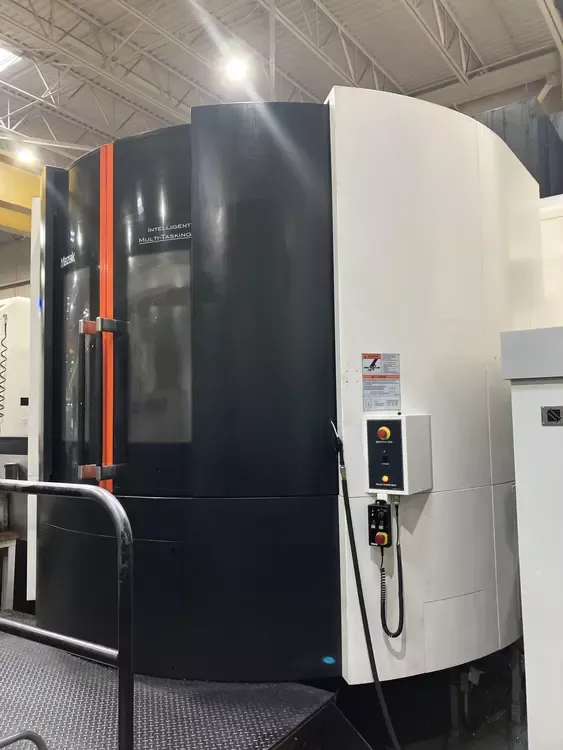

Mazak E 1060V8II 5 Axis

MAZAK E 1060V8II
Year: 2014

Number of tables / pallets: 2
Table size length: 39.4"
Table size width: 39.4"
Weight on table: 5,952 lb
Main spindle horsepower: 50 hp
Spindle nose to table: -9.8443"
Main spindle speeds: 10,000 RPM
Main spindle taper: 50
X-axis travel: 78.82"
Y-axis travel: 41.73"
Z-axis travel: 52.95"
B-axis travel: -30° to +120°
C-axis travel table indexing: 360°
Rapid traverse rate - X: 1,654 in/min
Rapid traverse rate - Y: 1,654 in/min
Rapid traverse rate - Z: 1,654 in/min
Cutting feed rate: 1,654 in/min
Vertical turning table size: 39.0"
Vertical turning table speed: 500 RPM
Vertical turning table horsepower: 50 hp
Automatic tool changer: 120 tools
Tool diameter max: 5.3"
Tool length max: 19.6"
Tool weight max: 66 lb
Machine weight: 85,600 lb
Control: CNC (MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL)
8MB program storage
E-Tower
Heidenhain linear scale feedback X, Y, Z axis
MAZACC - 3D high speed software package
High smoothing control
Spindle chiller
Spindle air blow
CON SEP chip conveyor
Renishaw NC4 laser tool length measurement
Coolant thru spindle V8M Superflow 1000 PSI
MAZAK MAZATROL NEXUS 5 Axis CNC color control MATRIX 2
EIA, EIA 3D comp, rotation, geometric, scaling, ext-data I/O
High speed, shape comp., thread, inverse time, dynamic compensation
3-D co-ordinate rotation, auto TLM, polar coordinates input, comparison stop, sync. cont., G54.1
Sync mill tap, rot-axis shape comp, GOO slope const., scale feedback, variable 600 sets
Cylinder, simultaneous 5 axis, EIA helical tap cycle
EIA pattern cycle, tilted work plane, table unbalance detect, 5 axis tool compensation
Ethernet running
Tool center point control
Program memory expansion
Mill turn Mazatrol
Renishaw OMP 60 probing
Hand held MPG
Stairs and platform
