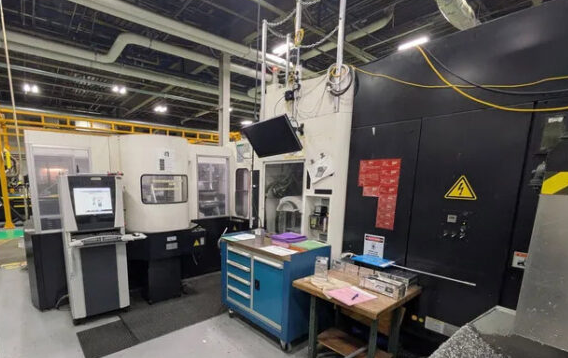

Mazak Variaxis 630-5X-II 5 Axis

Feedrate, Rapid and/or Axis travel
X-AXIS: 24.8″
Y-AXIS: 30.12″
Z-AXIS: 20.08″
RAPID TRAVERSE (X/Y/Z): 1,574 in/min.
Rotary/C axis
A-AXIS: -120° ~ +30°
C-AXIS: 360°
Control and features
CNC (Mazatrol Matrix)
Matrix
Full 5-axis
Through spindle coolant (213 psi)
Renishaw RMP600 touch probe
Renishaw NC4 laser tool setter
Air blast for NC4
Chip conveyor
Bar capacity and swing
MAX WORKPIECE DIAMETER: 28.74″
Spindle specs
POWER: 30 hp
RPM: 12,000 RPM
TAPER: CAT-40
Distance spindle nose to table top: 29.13″
Milling specs
TABLE-W: 19.69″
TABLE-L: 19.69″
MAX TABLE LOAD: 1,102 lb
MAX WORKPIECE HEIGHT: 19.69″

Feedrates
Chuck and tooling

ATC: 120
Machine size, weight, and any additional equipment
Palletech 6-pallet changer
DIMENSIONS: 308.5″ X 254.74″ X 171.25″
WEIGHT: 37,500 lb
New spindle last year
