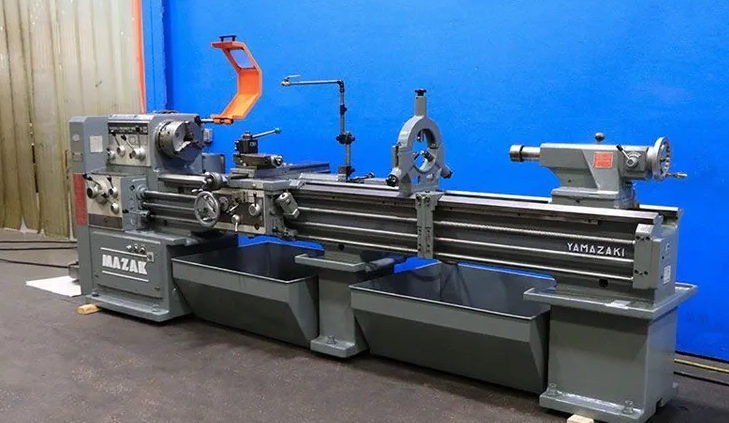

Mazak Engine Lathe 1500 RPM 18

MAZAK 18
1980s

18" swing over bed
25-1/8" swing in removable gap
10-1/8" swing over cross slide
100" distance between centers
3-1/8" hole thru spindle
D1-8" camlock spindle nose
14-1/2" width of bed
25 - 1500 RPM spindle speed range (12 speeds)
.0024" - .035" IPR longitudinal feed range (80 settings)
Cross feed range half of longitudinal feed setting
4 - 56 TPI inch threading range (40 settings)
.5 - 7 mm metric threading range (23 settings)
6-5/16" tailstock spindle travel
#4MT tailstock spindle taper
160" L x 45" W x 50" H approximate floor space
7,500 lbs approximate weight
Inch & metric threading
Taper turning attachment
Removable gap block
12" 3-jaw chuck
15" 4-jaw chuck
Roller type steady rest
Quick change toolpost
Live center for tailstock
Two speed tailstock
Hardened & ground bed ways
10 HP main motor
