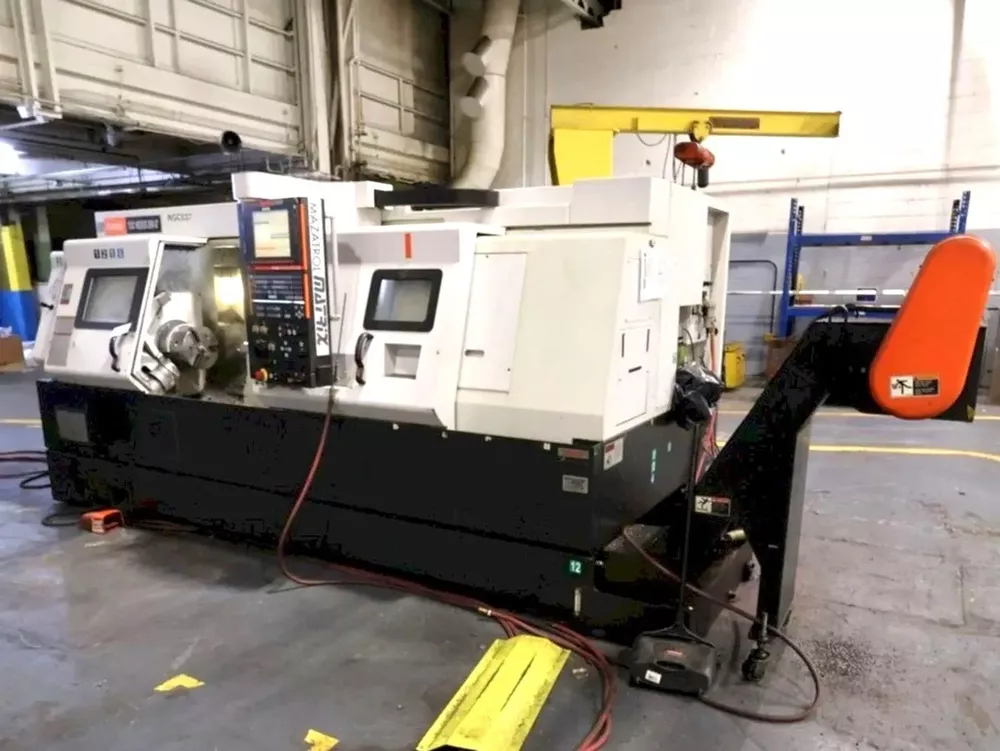

Mazak Fanuc Corporation Mazatrol Matrix CNC 4000 RPM Nexus QTN 250II/1500 2 Axis

X-axis travel: 9" (229 mm)
Z-axis travel: 61" (1549 mm)
Rapid traverse (X): 1181 in/min
Rapid traverse (Z): 1299 in/min
Control system: Fanuc Corporation Mazatrol Matrix CNC
Swing over bed: 26.5"
Distance between centers: 60.2"
Machining length: 59"
Bar capacity: 3"
Spindle speed: 4000 RPM
Spindle motor power: 35 hp
Spindle bore diameter: 3.6"
Spindle nose: A2-8
Chuck size: 10" hydraulic 3-jaw chuck
Turret positions: 12
Tailstock taper: MT4
Tailstock quill travel: 59.2"
Chip conveyor: Included (right discharge)
Automatic tool eye: Included
Tool life monitoring: Included
User macro programming: Included
USB port: 2 ports
Absolute positioning system: Included
Programmable hydraulic tailstock: Included
Machine weight: 12,000 lb
